12mm Flat Insulated Shaft Rotary Encoder, EC12-1 Series
Part Number
EC12-1
The EC12-1 encoder has a compact structure, an excellent sealing performance, and a push switch operation. It is ideal for use in automobile audio, other audio devices, home appliances, and more.
Parameters
| Diameters | 12mm |
| Shaft | plastic flat shaft |
| push-on switch | without |
| Rotational torque | 80~200gf.cm |
| Number of detents | 16/20/32 |
| Push-pull strength | ≥8kgf |
| Linear Accuracy | ±1% |
| Number of pulses | 24Pulses/360° |
| Rated power | DC5V |
| Voltage proof | 1 min at AC50V |
| Operating life | ≥30000cycles |

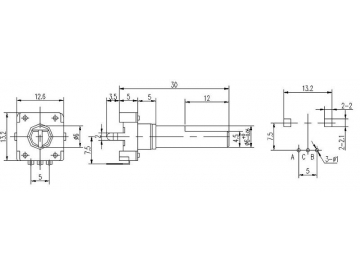

Dimensions
