EMF04 05 Diamond Coated End Mill, 4 Flute Corner Radius End Mill
- EMF series carbide surface features a diamond coating with hardness comparable to that of natural diamond
- Designed with extreme hardness for long life (10-50x) in graphite, composites & high silicon aluminum, plastic, wood; processed with the thickest diamond specially for graphite, carbon fibre and fibre glass

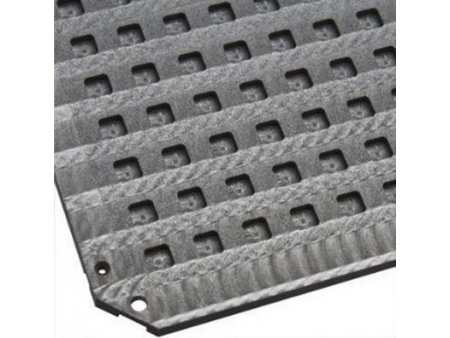

- High performance on processing graphite electrodes and 3D glass mould
Application
Product Specifications
| Coating | Diamond Coated | Work Material | Aluminum Alloy / Copper Alloy / Graphite / 3D Glass / Resin |
| Helix Angle | 30° to 40° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, Diamond coated Milling Tool, 2-4 Flute, Corner Radius (UNT-EMF05)
| UNT EDP # Click to Order | Radius R | Mill Dia. D1 | Effective Length L3 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMFC.04.0100105010 | 0.1 | 1.0 | 10 | 4 | 3 | 50 | 2 |
| EMFC.04.0150105015 | 0.1 | 1.5 | 15 | 4 | 5 | 50 | 2 |
| EMFC.04.0200105015 | 0.1 | 2.0 | 15 | 4 | 6 | 50 | 2 |
| EMFC.04.0200105020 | 0.1 | 2.0 | 20 | 4 | 6 | 50 | 2 |
| EMFC.04.0200205015 | 0.2 | 2.0 | 15 | 4 | 6 | 50 | 2 |
| EMFC.04.0200205020 | 0.2 | 2.0 | 20 | 4 | 6 | 50 | 2 |
| EMFC.05.0300105015 | 0.1 | 3.0 | 15 | 4 | 10 | 50 | 4 |
| EMFC.05.0300205015 | 0.2 | 3.0 | 15 | 4 | 10 | 50 | 4 |
| EMFC.05.0300505015 | 0.5 | 3.0 | 15 | 4 | 10 | 50 | 4 |
| EMFC.05.0300505020 | 0.5 | 3.0 | 20 | 4 | 8 | 50 | 4 |
| EMFC.05.0300507520 | 0.5 | 3.0 | 20 | 4 | 12 | 75 | 4 |
| EMFC.05.0300510030 | 0.5 | 3.0 | 30 | 4 | 12 | 100 | 4 |
| EMFC.05.0301007520 | 1.0 | 3.0 | 20 | 4 | 20 | 75 | 4 |
| EMFC.05.0301010030 | 1.0 | 3.0 | 30 | 4 | 30 | 100 | 4 |
| EMFC.05.0400205020 | 0.2 | 4.0 | 20 | 4 | 12 | 50 | 4 |
| EMFC.05.0400207530 | 0.2 | 4.0 | 30 | 4 | 12 | 75 | 4 |
| EMFC.05.0400505020 | 0.5 | 4.0 | 20 | 4 | 12 | 50 | 4 |
| EMFC.05.0400507530 | 0.5 | 4.0 | 30 | 4 | 12 | 75 | 4 |
| EMFC.05.0400510035 | 0.5 | 4.0 | 35 | 4 | 12 | 100 | 4 |
| EMFC.05.0401005020 | 1.0 | 4.0 | 20 | 4 | 20 | 50 | 4 |
| EMFC.05.0401007530 | 1.0 | 4.0 | 30 | 4 | 30 | 75 | 4 |
| EMFC.05.0401010035 | 1.0 | 4.0 | 35 | 4 | 35 | 100 | 4 |
| EMFC.05.0600307530 | 0.3 | 6.0 | 30 | 6 | 20 | 75 | 4 |
| EMFC.05.0600310040 | 0.3 | 6.0 | 40 | 6 | 25 | 100 | 4 |
| EMFC.05.0600507530 | 0.5 | 6.0 | 30 | 6 | 20 | 75 | 4 |
| EMFC.05.0600510040 | 0.5 | 6.0 | 40 | 6 | 25 | 100 | 4 |
| EMFC.05.0600515060 | 0.5 | 6.0 | 60 | 6 | 25 | 150 | 4 |
| EMFC.05.0601007530 | 1.0 | 6.0 | 30 | 6 | 30 | 75 | 4 |
| EMFC.05.0601010040 | 1.0 | 6.0 | 40 | 6 | 40 | 100 | 4 |
| EMFC.05.0601015060 | 1.0 | 6.0 | 60 | 6 | 60 | 150 | 4 |
| EMFC.05.0800507535 | 0.5 | 8.0 | 35 | 8 | 25 | 75 | 4 |
| EMFC.05.0800510045 | 0.5 | 8.0 | 45 | 8 | 30 | 100 | 4 |
| EMFC.05.0800515060 | 0.5 | 8.0 | 60 | 8 | 30 | 150 | 4 |
| EMFC.05.0801010045 | 1.0 | 8.0 | 45 | 8 | 45 | 100 | 4 |
| EMFC.05.0801015060 | 1.0 | 8.0 | 60 | 8 | 60 | 150 | 4 |
| EMFC.05.1000510045 | 0.5 | 10.0 | 45 | 10 | 35 | 100 | 4 |
| EMFC.05.1000515065 | 0.5 | 10.0 | 65 | 10 | 35 | 150 | 4 |
| EMFC.05.1001010045 | 1.0 | 10.0 | 45 | 10 | 45 | 100 | 4 |
| EMFC.05.1001015065 | 1.0 | 10.0 | 65 | 10 | 65 | 150 | 4 |
| EMFC.05.1200510050 | 0.5 | 12.0 | 50 | 12 | 40 | 100 | 4 |
| EMFC.05.1200515070 | 0.5 | 12.0 | 70 | 12 | 40 | 150 | 4 |
| EMFC.05.1201010050 | 1.0 | 12.0 | 50 | 12 | 50 | 100 | 4 |
| EMFC.05.1201015070 | 1.0 | 12.0 | 70 | 12 | 70 | 150 | 4 |
