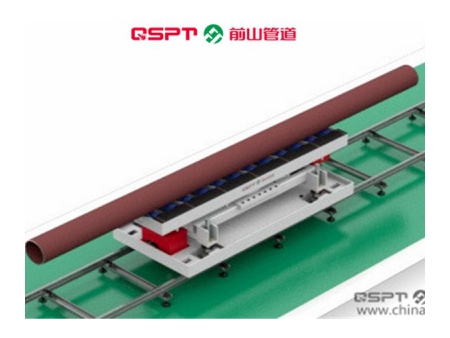

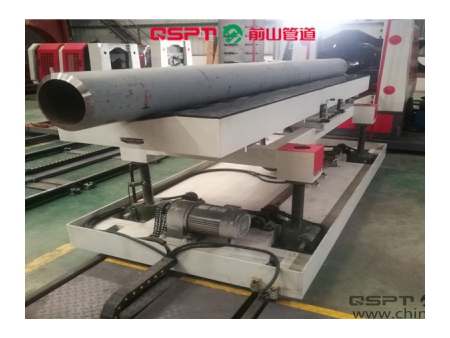

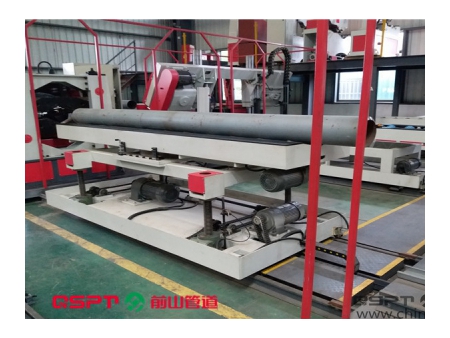

Pipe Conveying System for End Beveling Machine

Pipe Conveying System for End Beveling Machine
Pipe Conveying System for End Beveling Machine
Pipe Conveying System for End Beveling Machine
Pipe Conveying System for End Beveling Machine
Pipe Conveying System for End Beveling Machine
Request a Quote

Model: PLRCS-16Ba/24Ba/32Ba/40Ba; PLRCS-16Bc/24Bc/32Bc/40Bc

Technical Parameters
  • Pipe Diameter Applicable: DN400/DN600/DN800/DN1000
  • Conveying Length: ≥500MM
  • Line Length: 7.5M (or depending on the situation)
  • Line Height: 800MM
  • Material of the Roller Bench: Carbon steel with blue treated surface (coated with rubber if necessary)
  • Conveying Speed: 2~20M/Min
  • Speed Adjustment: Manual/VF stepless speed adjustment
  • Control System: Non-PLC control (or depending on the situation)
  • Turnover Mechanism: Nil (or depending on the situation)
  • Lifting System: A lifting system is equipped to adjust the center elevation of pipes automatically and to bevel pipes of different diameters
  • Turning System: A turning system is equipped to turn pipes automatically and to bevel the two end of pipe(option)
Features
  • The pipe conveying system for end beveling machine conveys the pipe automatically or manually when the end beveling machine works and the pipe can be removed from the machine with a turnover mechanism if necessary.
  • It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.
  • Specially designed conveying system for Pipe Beveling Machine; V type polyurethane roller; electric lifting and transport for beveling different diameters of pipes; VF stepless speed control, manual control on console (wireless remote control for option).
  • Specially designed conveying system for Pipe Beveling Machine; V type polyurethane roller, electric lifting and transport for beveling different diameters of pipes; hydraulic scissor lift mechanism, hydraulic rotation, VF stepless speed control, manual control on console (wireless remote control for option).
