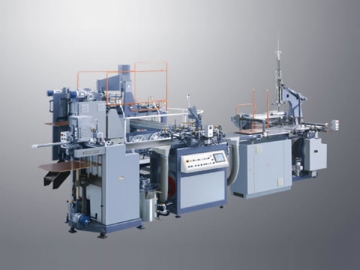

The SRB6040 automatic rigid box making machine is an ideal option for manufacturing upscale gift box. The reasonable design, reliable performance, and the internationally advanced technology make this product quite popular.
Our packing box machinery is engineered with PLC system, photoelectric tracking system, and touch screen human-computer interface, realizing automatic surface paper feeding, surface paper gelatinizing, automatic paperboard feeding, paperboard forming and corner gluing, surface paper gluing, and paper box forming, at one stroke. The high automation, as well the on-line operation, effectively increases the productivity by 30 times that of the traditional product. The automatic rigid box making machine is widely used for making box for shoes, skirt, jewelry, and other gifts.
Features 1. The paper box forming machine adopts automatic surface paper feeding system. 2. Automatic hot melt adhesive circulation, mixing, and applying. 3. The automatic hot melt adhesive feeding device and slitting unit are capable of completing the gluing of the four corners, at one stroke. 4. A vacuum suction ventilator is installed under the conveyer belt of the automatic rigid box making machine, to eliminate the relative deviation of the gelatinized surface paper. 5. A hydropneumatic deviation correcting device is employed for perfect combination of the gelatinized surface paper and the inner box. 6. Smartly designed, the paper box forming unit will collect the paper box for forming based on the conveying conditions of the paper box on the conveyor. 7. Our paper box forming unit of the automatic gift box making machine can complete the box feeding, edge wrapping, surface paper folding, and forming for one operation. 8. The automatic rigid box making machine comes with failure diagnosis and warning system.

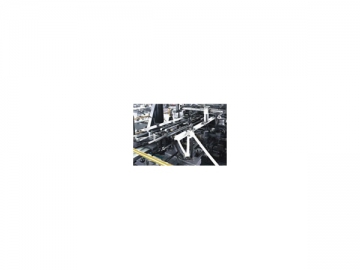

Material feeding unit

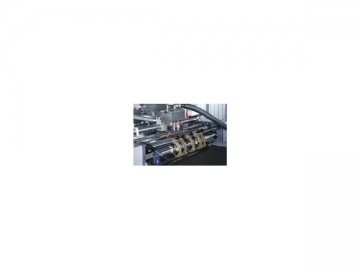

Gelatinizing device

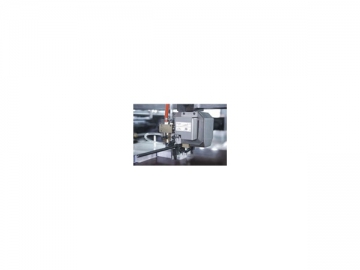

Corner gluing system

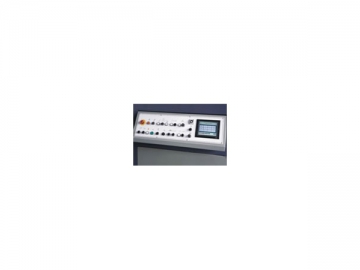

HMI
Corner gluing

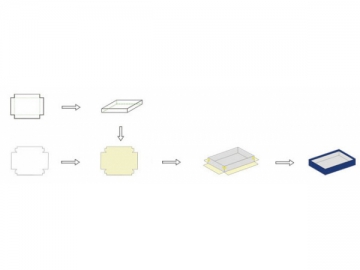

Production Flow
Gelatinizing
Surface paper sticking
Forming
Surface paper
Paperboard
Corner gluing

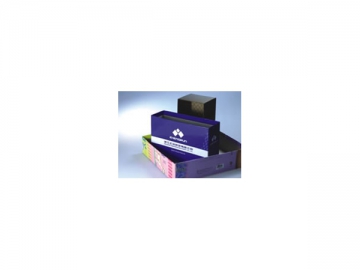

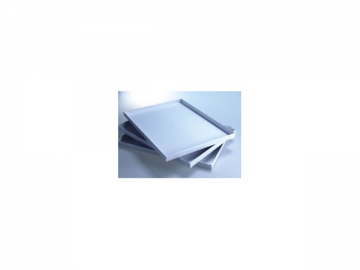

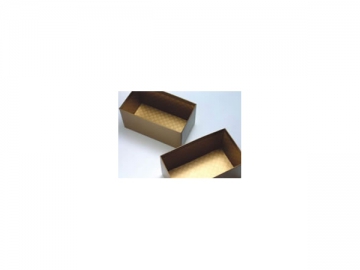

Paper box

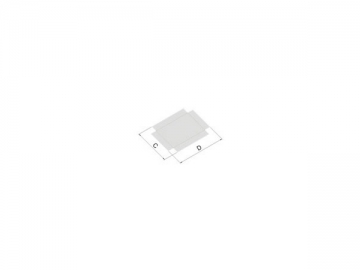

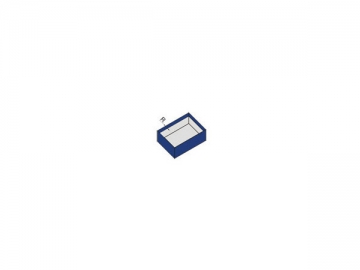

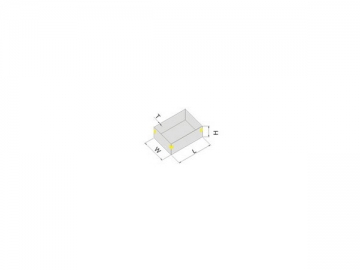

Parameter Specifications W 2H-4T≤C (Max.) L 2H-4T≤D (Max.) A (Min.)≤W 2H 2T 2R≤A (Max.) B (Min.)≤L 2H 2T 2R≤B (Max.)
Technical Parameters of Automatic Rigid Box Making Machine
Surface Paper Size (A×B)
Min. Value of A
95mm
Max. Value of A
610mm
Min. Value of A
180mm
Max. Value of A
850mm
Surface Paper Thickness
100-200g/m2
Cardboard Thickness
0.8-3mm
Size of Finished Paper Box (W×L×H)
Min. Value of W
50mm
Max. Value of W
400mm
Min. Value of L
100mm
Max. Value of L
600mm
Min. Value of H
15mm
Max. Value of H
150mm
-
Min. Value of R
7mm
Max. Value of R
35mm
Positioning Accuracy
±0.5mm
Production Capacity
≤35 sheets/min
Motor Power
10.35kW/380V, 3-phase
Heating Power
6kW
Machine Weight
6800kg
Overall Dimensions (L×W×H)
6600×4100×3250mm
Note 1. The minimum and maximum size of the paper box is subject to the minimum and maximum size, as well as the quality of the surface paper. 2. Generally, the production capacity is about 35pcs/ min, and it will be influenced by the size of the paper box. 3. The surface paper folding depth can be customized up to 60mm. 4. Air compressor is not included in the standard configuration.
