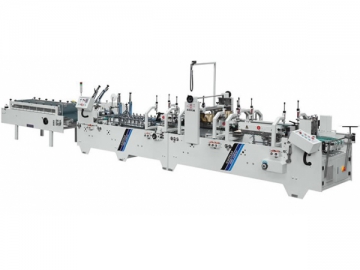

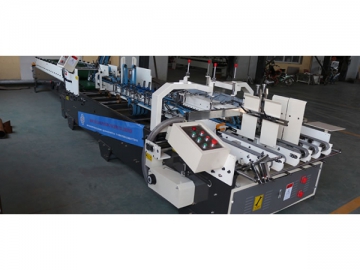

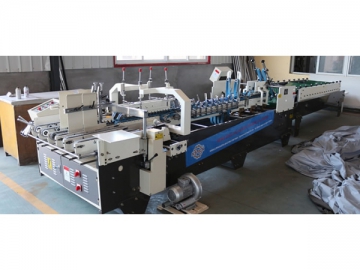

This is our folder gluer for straight line and crash lock bottom boxes. The machine is specially designed for paperboard shaping and adhesive application after box cutting. The equipment is highly versatile and can be used to fold and paste various straight seam boxes and bottom edging boxes.

Technical Parameters
Power capacity: 6.5KW 380V
Overall size (mm): 9000 x （1100）1300 x 1350
Weight (kg): 2600

KSHH-800AG

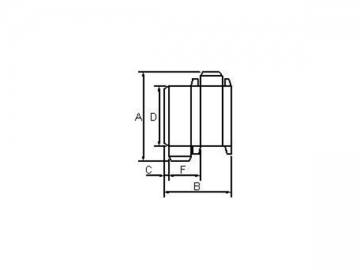

Type of box Amax Amin Bmax Bmin Cmin Dmin Fmin
No-edged bottom box 700mm 110mm 600mm 110mm 8mm 70mm 51mm
Edge bottom box 700mm 160mm 570mm 180mm 9mm 90mm 85mm
KSHH-1200AG
Type of box Amax Amin Bmax Bmin Cmin Dmin Fmin
No-edged bottom box 1200mm 110mm 800mm 110mm 8mm 70mm 51mm
Edge bottom box 1200mm 160mm 770mm 180mm 9mm 90mm 85mm
The machine package size
Model Size(L*W*H)(mm) Weight(kg) Volume (㎡)
KSHH-800AG 2820*1130*1400 920/850 4.46
2750*1160*1250 1050/920 3.99
2680×1030×1040 650/580 2.87
Model Size(L*W*H)(mm) Weight(kg) Volume (㎡)
KSHH-1200AG 2820*1370*1240 1020/910 4.79
2750*1380*1250 1150/980 4.74
2680×1110×1040 680/600 3.09
