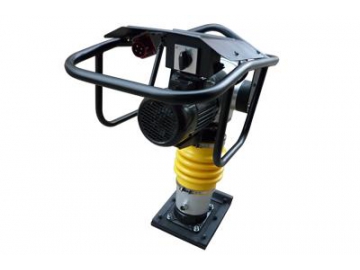

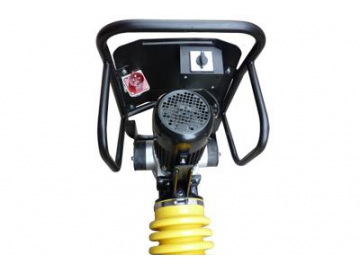

Vibratory Rammer Item VR70S-D
Request a Quote
- The VR70S-D vibratory rammer is electric motor driven, which ensures there is no pollution, making it environmentally friendly.
- This vibratory rammer features a stronger impact force, giving it a higher working efficiency. It is suitable for backfill compaction of narrow areas in municipal engineering and auxiliary vibration or compaction of soils on slopes, trenches and other confined areas.
- The operator handlemakes it easy to control the forward and backward movement, thus ensuring easy operation.
Description
Technical Specifications
| Model | VR70S-D |
| Stroke at the ramming shoe (mm) | 60 |
| Impact frequency(Hz) | 10 |
| Impact force(kN) | 15 |
| Travel speed (m/HR) | 820 |
| Ramming shoe size (W×L) (mm) | 280×330 |
| Motor type | three-phase motor |
| Motor power(Hp) | 4.5 |
| Dimensions (L×W×H)(mm) | 430×780×1080 |
| Weight(kg) | 80 |
