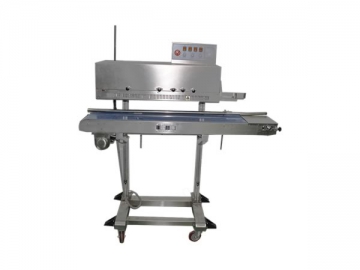

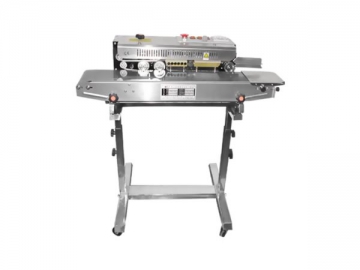

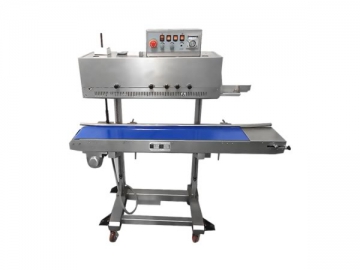

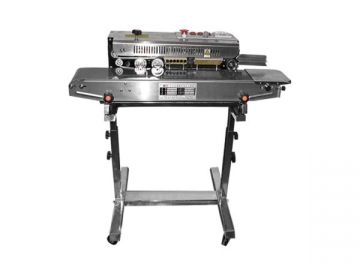

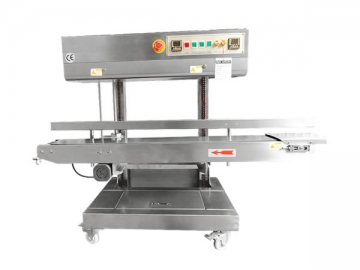

Bag Sealing Machine
The bag sealing machine adopts electronic thermostatic control and stepless speed regulation. The bag sealer can continuously seal bags of various materials and is suitable for packing small-size bags. If needed, lettering device and counting device can be installed.
Technical Parameters of Bag Sealing Machine| Model | FRM-770 | FRM-980 | FRM1120 |
| Power supply (V/Hz) | AC220/50 110/60 | AC 220/50 110/60 | AC 220/50 110/60 |
| Motor power | 50 | 50 | 100 |
| Heating power (W) | 300× 2 | 300×2 | 300×2 |
| Lettering heating power (W) | 40×2 | 40×2 | 40×2 |
| Sealing speed (m/min) | 0-12（0-16） | 0-12 (0-16) | 0-12 |
| Sealing width (mm) | 8 | 10 | 10 |
| Temperature control range (℃) | 0-300 | 0-300 | 0-300 |
| Printing method | Solid ink | Solid ink | Solid ink |
| Height from sealing center to conveyor (mm) | 10-40 | 10-40 | 20-80 |
| Conveyor (L×W)(mm) | 95Ｘ180 | 930×153 | 1100×205 |
| Weight of each packed bag (kg) | ≤1 | ≤1 | 2.5 |
| Conveyor bearing capacity (kg) | ≤3 | ≤3 | 7.5 |
| Dimensions (L×W×H)mm | 950Ｘ550Ｘ900 | 950×400×430 | 1100×610×1030 |
| Net weight (kg) | 25 | 29 | 82 |
