Stainless Steel Flexible Coupling, Model 96MP
for Medium Pressure System
The model 96MP stainless steel flexible coupling is designed for medium pressure reverse osmosis system. We use high quality stainless steel materials to meet a variety of aggressive corrosive environments. The materials of the housing, bolt and nut are stainless steels are available of 304 or 316L, conforming to USA ASTM standards and optional.
- Size: 3/4"to 12" (DN20 to DN300)
- Rated working pressure: 600 psi (42 bar)
- Only for SCH 40 groove pipe

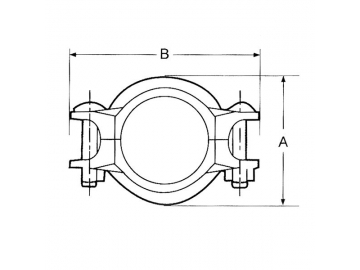

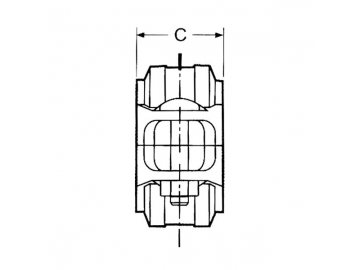

Nominal | Pipe | Rated Working | Pipe End | Dimensions | ||
Size | OD | Pressure | Separation | A | B | C |
mm in | mm in | psi bar | mm in | mm in | mm in | mm in |
20 0.75 | 26.70 1.050 | 600 41.34 | 0-1.6 0-0.06 | 48 1.890 | 85 3.346 | 42 1.654 |
25 | 32.00 1.260 | 600 41.34 | 0-1.6 0-0.06 | 52 2.047 | 92 3.622 | 42 1.654 |
25 1 | 33.40 1.315 | 600 41.34 | 0-1.6 0-0.06 | 54 2.126 | 94 3.701 | 42 1.654 |
32 | 38.00 1.496 | 600 41.34 | 0-1.6 0-0.06 | 61 2.401 | 101 3.976 | 44 1.732 |
32 1.25 | 42.20 1.660 | 600 41.34 | 0-1.6 0-0.06 | 63 2.480 | 103 4.055 | 44 1.732 |
40 1.5 | 48.30 1.900 | 600 41.34 | 0-1.6 0-0.06 | 70 2.756 | 112 4.409 | 44 1.732 |
50 | 57.00 2.244 | 600 41.34 | 0-1.6 0-0.06 | 80 3.149 | 121 4.764 | 44 1.732 |
50 2 | 60.30 2.375 | 600 41.34 | 0-1.6 0-0.06 | 82 3.228 | 124 4.882 | 44 1.732 |
65 2.5 | 73.00 2.875 | 600 41.34 | 0-1.6 0-0.06 | 96 3.780 | 148 5.827 | 44 1.732 |
65 | 76.10 3.000 | 600 41.34 | 0-1.6 0-0.06 | 100 3.937 | 152 5.984 | 44 1.732 |
80 3 | 88.90 3.500 | 600 41.34 | 0-1.6 0-0.06 | 113 4.449 | 166 6.535 | 44 1.732 |
100 | 108.00 4.2501 | 600 41.34 | 0-3.2 0-0.13 | 134 5.276 | 187 7.362 | 48 1.890 |
100 4 | 114.30 4.500 | 600 41.34 | 0-3.2 0-0.13 | 140 5.512 | 193 7.598 | 48 1.890 |
125 | 133.00 5.250 | 600 41.34 | 0-3.2 0-0.13 | 160 6.299 | 215 8.465 | 50 1.969 |
125 5 | 141.30 5.563 | 600 41.34 | 0-3.2 0-0.13 | 167 6.575 | 222 8.740 | 50 1.969 |
150 | 159.00 6.259 | 600 41.34 | 0-3.2 0-0.13 | 186 7.323 | 242 9.528 | 56 2.205 |
150 6 | 168.30 6.625 | 600 41.34 | 0-3.2 0-0.13 | 196 7.717 | 252 9.921 | 56 2.205 |
200 8 | 219.10 8.625 | 600 41.34 | 0-3.2 0-0.13 | 255 10.039 | 319 12.559 | 60 2.362 |
250 10 | 273.00 10.75 | 1200 82.68 | 0-3.2 0-0.13 | 342 13.465 | 400 15.748 | 65 2.559 |
300 12 | 323.90 12.75 | 1200 82.68 | 0-3.2 0-0.13 | 397 15.630 | 478 18.819 | 65 2.559 |
Material Specification
Optional housing materials:
- Grade CF8 conforming to ASTM A351 or A743
- Type 316 conforming to ASTM A743 CF8M
- Type 316L conforming to ASTM A743 CF3M
- CE8M conforming to ASTM A890 Grade 2A
- Austenic 904L (CN2MCuN) conforming to A351
- Duplex 2205 (CD3MN) conforming to ASTM A890 Grade 4A
- Super duplex 2507(CE3MN) conforming to ASTM A890 Grade 5A
- Austenic 254SMO (CK3MCuN) conforming to A743
Rubber Gaskets
The gasket is C-shaped, made of EPDM (ethylene propylene diene monomer). The service temperature range is -50~150℃. It is recommended for used in applications including cold water, hot water, dilute acid, oil-free air and multiple chemical products. Not for use in petroleum applications.
Bolts & Nuts
- Type 304 stainless steel track bolts and nuts conforming to ASTM F-593
- Type 316 stainless steel track bolts and nuts conforming to ASTM F-593
- Type 316 stainless steel track bolts conforming to ASTM A193 B-8M, silicon bronze heavy duty nuts conforming to ASTM B98 C65100
