The KSZ100 fully pneumatic DTH drilling rig comes with an air compressor for driving the movements like propulsion, rotating, and impacting. It has great adaptability, and comes in three types with different supporting structures, namely single top type, double top type, and pedestal type. You can choose the proper one according to the working environment. This kind of drilling equipment has simple structure, single motor and is easy to move. The unique two-tone silencer of the fully pneumatic DTH drilling gives rise to a great noise control performance. The centralized operating mechanism makes the pneumatic drill easy to operate.

Specifications
Model
Drill diameter80-100 mm
Drill depth≥20m
Rotating speed0~93rpm
Working pressure0.5~0.7MPa
Drill rod60×1000mm
Air consumption≥10m³/min
Lifting force9600N
NoteFully pneumatic type

Recommend parts for the KSZ100 fully pneumatic DTH drilling rig
Drill hammer: Φ90
Drill bit: Φ90
Drill pipe: Φ60×1000mm

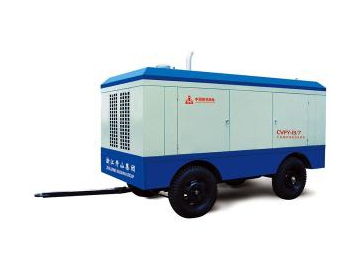

Recommend piston air compressor for the KQY90 pneumatic-hydraulic DTH drilling rig

Specifications of the piston air compressor
ModelCVFY-13/7CVF-13/7
Rated volume flow13m³/min (460cfm)13m³/min (460cfm)
Rated working pressure7bar (102psi)7bar (102psi)
Engine brandYuchai or CumminsYuchai or Cummins
Engine modelYC6108ZG/6BTA5.9-C118YC6108ZG/6BTA5.9-C118
Rated power108kW (145HP)/87kW (118HP)108kW (145HP)/87kW (118HP)
Cylinder (Diameter×Quantity)260mm×2/160mm×2260mm×2/160mm×2
Volume of gas tank350L600L
Weight3100Kg2400Kg
Dimension (L×W×H mm)3500×1700×21003280×1200×1520
