Robotic Pick and Pack Systems

: http://jwweigher.com/8-3-robotic-pick-and-pack-systems.html

The robotic pick and place system utilizes a visual control system, while the positioning arm utilizes a multi-axis motion system to carry out an incredibly fast and accurate pick and place process. The robotic pick and place system is capable of automatic picking, stacking, and sorting based on specific customer requirements.

Users can also equip the robotic product feeder with a check weigher, metal detector, conveyor systems and packing machines to build a complete production line with a much higher efficiency. The robotic pick and place product feeder is widely used in production lines for food, medicine, seasoning powders, plastics, crafts electrical parts, and more.

Details

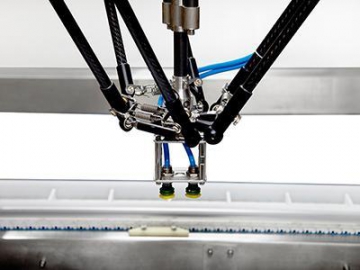

Vacuum (Suction) lifter

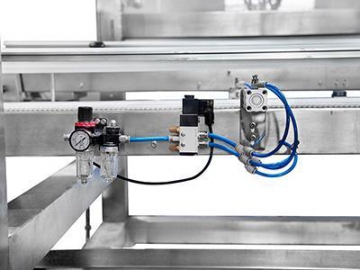

Pneumatic control parts

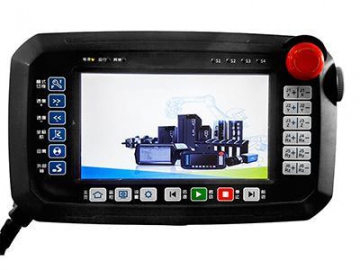

Handheld teach pendant

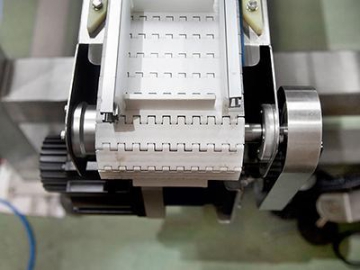

Mat top conveyor driven by servo

Technical parameters

Model	JW-D1100
Product Code	D1100-1-1
Structure	DELTA (4-axis integrated in parallel connection)
Repetitive accuracy	±0.01mm
Maximum speed (Pack/Min)	150P/M
Arm working range	φ1100mm
Maximum product weight	3000g
Power supply	220V/4KW/ 50/60Hz
Machine dimension (L×W×H)	1200×1100×610mm
Machine weight	110Kg

Advantages

The touchscreen control panel supports a teach mode, touchscreen calibrating, parameter modification and more. The teach pendant [CL1] allows for easy code modification through a simple reprogramming.
It is recommended that the same control panel and teaching pendant [CL2] are used for multiple working stations.
The robotic pick and place machine can process products with a maximum weight of 3000g, and it will stop automatically if the product weight exceeds 3000g.
The rotary motion arm is made of high quality carbon fiber for a light and durable structure.
The robotic pick and place machine is driven by a servo motor for an accurate speed control.
The main machine body uses stainless steel or carbon steel structures for customers to choose from.
