ZF-250A Envelope Making Machine

ZF-250A Envelope Making Machine
ZF-250A Envelope Making Machine
: http://printingmachinecn.com

The ZF-250A envelope making machine is suitable for producing 1# to 6# standard Chinese envelope, red packet, chopstick wrapper, western medicine bag and other kinds of small paper bags. The paper bag making machine adopts air-suction type paper feeding system for ceaseless paper feeding and reliable paper folding.

Engineered with special air suction type folding unit, the envelope machinery has excellent stability. The rotating gelatinizing unit ensures uniform glue spreading. Our envelope making machine is your first choice for manufacturing Chinese envelope, because of the high efficiency, easy operation, and so on.

Technical Parameters
ZF-250A Envelope Making Machine
Applicable Material 70-157g/m2
Production Capacity 8000-18000 pcs/hour
Envelope Size 65×70-120×230mm (Customized machine for the envelope with the minimum width of 28mm is available)
Machine Weight 850kg
Motor Power 1.5kW
Air Pump Power 3.0kW
Overall Dimensions 1560×790×1430mm

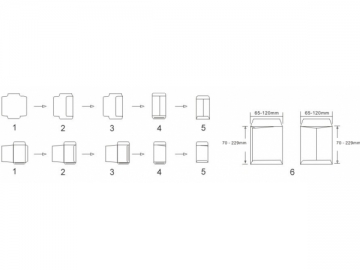

Processing Diagram
  • 1. Paper feeding
  • 2. Transverse folding
  •  3. Gelatinizing
    •
  • 4. Transverse folding
  • 5. Vertical folding
  • 6. Envelope Specifications
