Trailer Mounted Concrete Pump Manufacturer

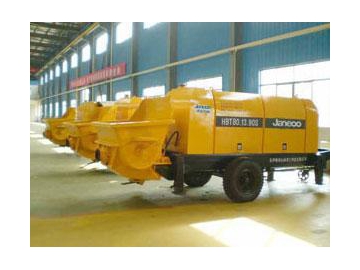

Trailer Mounted Concrete Pump

: http://janeoocn.com/8b-concrete.html

Features of Trailer Mounted Concrete Pump
1. Reasonable structure, easy operation and maintenance;
2.With the S-tube distribution valve, which is of little pressure loss and good sealing;
3.The hydraulic system is equipped with the open-circuit, it can adopt Germany Rexroth or Japan Kawasaki motor pump, and also can use Germany or WEICHAI diesel pump. They all have the high-low pressure switching function, which greatly expands the use range of the same pump;
4. The electronic control system is run by PLC programmable controller.

Application of Trailer Mounted Concrete Pump
This trailer mounted concrete pump is widely applicable in the continuous construction fields of water conservancy, electric power and urban infrastructure construction.

Technical Parameter of Trailer Mounted Concrete Pump

Trailer-mounted concrete pump series		HBT motor S-valve series			HBTR diesel engine S-valve series
Model	Unit	HBT60C. 13.90/S	HBT80C. 16.110/S	HBT80C. 18.165/S	HBTR80C. 13.130/S	HBTR80C. 16.161/S
Theoretical concrete output (low pressure/high pressure)	m³/h	66/39	74/44	85/53	90/53	75/43
Theoretical concrete pressure (low pressure/high pressure)	MPa	7/13	9/16	9/18	7/13	9/16
Hydraulic system pressure	MPa	32	32	32	32	32
Cylinder diameter X Stroke	mm	φ200 x 1600	φ200 x 1800	φ200 x 1800	φ200 x 1800	φ200 x 1800
Displacement of main oil pump	ML/r	190	260	190 x 2	190	190
Dynamic power	kW	90	110	90 75	130	161
Feeding height	mm	1450	1450	1450	1450	1450
Hopper volume	m³	0.7	0.7	0.7	0.7	0.7
Volume of hydraulic tank	L	600	600	600	600	600
Overall dimensions	mm	6100 x 2030 x 2200	6350 x 2030 x 2200	6600 x 2030 x 2200	6350 x 2030 x 2300	6350 x 2030 x 2300
Total weight	kg	6000	6150	6250	6500	6550
Theoretical transport distance (vertical/horizontal)	m	240/960	240/960	300/1400	270/1200	350/1500

Note: The above parameters are subject to change without prior notice.
