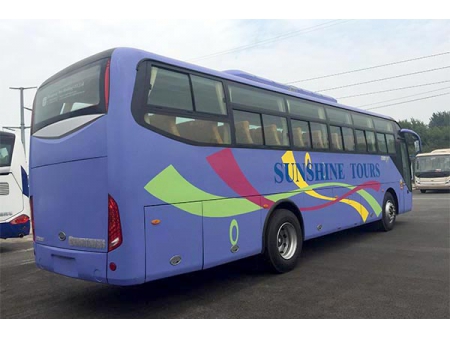

LCK6108T Coach

: http://zhongtongbuses.com/9-2-lck6108t-stock-buses/index.html

Overall specification	Overall length (mm)		10400	Engine	Engine model	YC6J230-20
	Overall width (mm)		2480		Manufacturer	Chinese Yuchai
	Overall height (mm)		3400		Engine position	Front
	Body inside height (mm)		1945		Engine Type	6 cylinders in line, turbocharged, water cooling, inter-cooling
	Wheel base (mm)		5000		Max power(kw/rpm)	170
	Front/rear overhang (mm)		2200/3200		Max torque(N.m/rpm)	810
	Approach/departure (º)		11/9		displacement(L)	6.5
	First step height (mm)		420		Bore/stroke mm	105X125
	Max G.V.W.kg		13500		fuel	Diesel
	Seats capacity (person)		44 1		Emission standard	Euro II
	Max. speed km/h		100	Steering wheel position		LHD
	Luggage capacity (m³)		6.3
Items		Standard Equipments
Chassis Data	Manufacturer	Made in China
	Chassis model	Made in China
	Gear box	Manual 6 speed S6-80
	Front axle	front axle,5.5 Ton
	Rear axle	rear axle, 9Ton
	Suspension	leaf spring 10/12
	Steering	Integral power steering
	Brake	Dual circuit air braking, drum brake
	Fuel tank	380 L
	Tyre	11R22.5 Double Coin
	Battery /dynamo	6-QA-165/110A
	Others	Air dryer, clutch booster, brake exhaust, ABS
Bus specification	Body construction	Semi-integral,

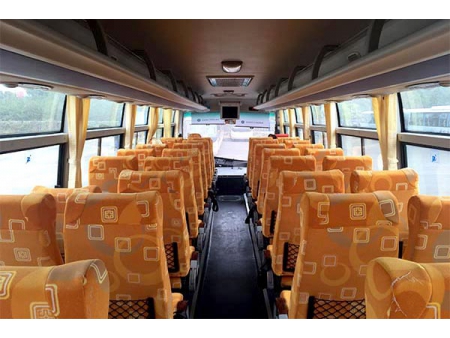

	Interior trim	Formed soft interior trim, air distributors and reading lights in the luggage rack
	Door & door pump	Front aluminum door, outside swing, domestic door pump
	Window, windscreen	Front rubber-laminated windscreen,
		rear window toughened safety glass
		sliding side window
	Rear mirror system	Manual motion
	A/C system	26000Kcal/h Driving fan
	Heating system	Front windscreen defroster
	Video system	250G MP5 one 17''LCD in front
	Lamps	New type combination lamp front and rear, rear brake light
	Wiper	Electric wiper
	Luggage door	Steel panel overturning opening door
	Seat	2 2 layout, ZTZY3192,adjusting type,
	Paint	High quality paint
	others	skid proof floor leather, electric clock, windscreen sun visor, side window curtain, fire extinguisher, Stainless steel decoration cover, bull bar
