Description

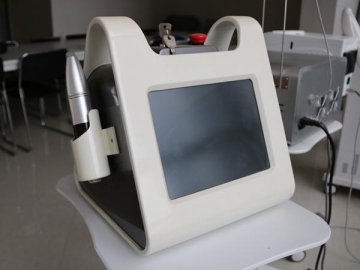

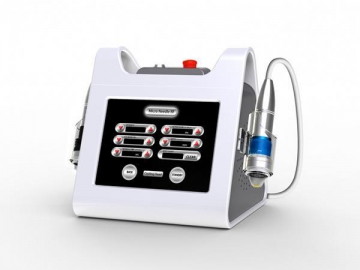

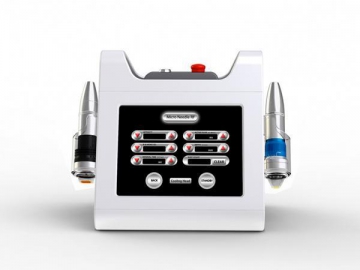

The portable fractional Rf micro-needling device directly applies the RF energy controlled by microneedle to dermis at the specified depth, reaching the effect of skin rejuvenation and skin tightening. It is a horizontal type machine that can be directly put on a table, and is especially applicable for beauty salons and small dermatology clinics.

Equipment parameters
System Type Mono&Bipolar Rf/Bipolar Rf
Frequency 1-10hz
Total Rf Treatment Level Up to 10

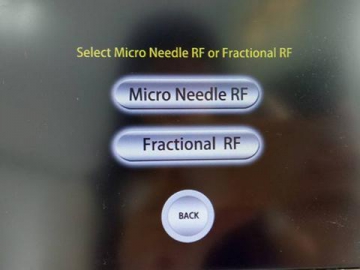

Dual Operation Mode Fractional Rf Microneedle&Fractional RfSublative
Max. Energy 100j/cm2

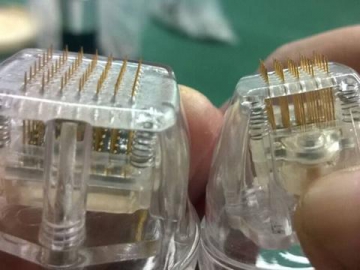

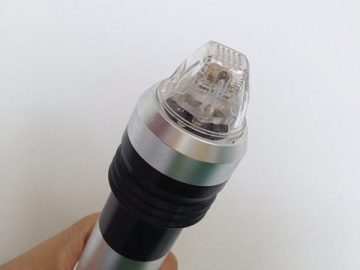

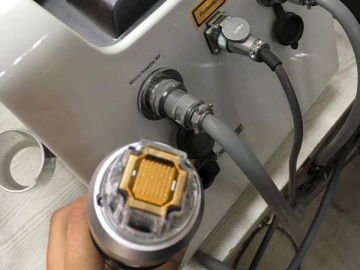

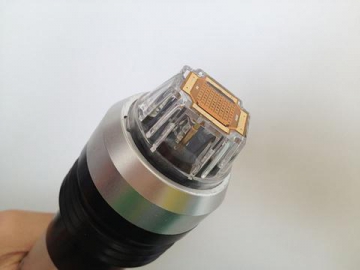

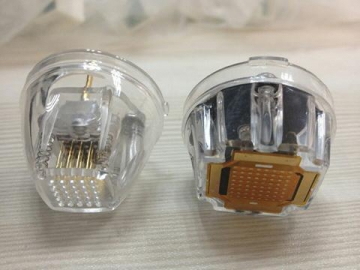

Disposable Tip Micro-Electrode Needle & Micro -Electrode Tip
Depth of Needle 0.5-3mm (Adjustable)
Display LCD
Switch Foot Switch
Dimension 36.2×40.9×45cm
Weight 10kg
Electrical Requirement 100-240VAC, 50-60HZ
Treatment scope
  • The portable fractional RF micro-needling device can promote the regeneration of collagen, lift facial skin and remove wrinkles.
  • It can improve the water and oil status of skin, as well as reduce acnes and acne scars.
  • Shrink pores to improve rough skin.
  • Improve eye problems such as pouch, crows feet.
  • Beautify and soften skin, weaken pigments and spots.
Reference treatment
Indication Level Needle Tip (mm) ON time Pass Sessions Delay weeks
Large pore 3-5 1.0-1.5mm 100-150ms 2-3 3-4 4-5
Acne/Acne scar 3-5 1.0-1.5mm 150-200ms 2-3 3-4 4-5
Skin rejuvenation 3-5 0.5-1.0mm 50-100ms 1-2 3-4 4-5
Skin resurfacing 3-5 0.5-1.0mm 50-100ms 2-3 3-4 4-5
Skin tightening 3-5 1.0-1.5mm 50-100ms 1-2 3-4 4-5
Skin tightening (Abdominal) 3-5 2.0-3.0mm 100-150ms 2-3 3-4 4-5
Stretch marks 3-5 2.0-3.0mm 100-200ms 2-3 3-4 4-5
Neck 3-5 0.5-1.0mm 50-100ms 1-2 3-4 4-5
Wrinkle/Fine line 3-5 1.0-1.5mm 150-200ms 2-3 3-4 4-5
