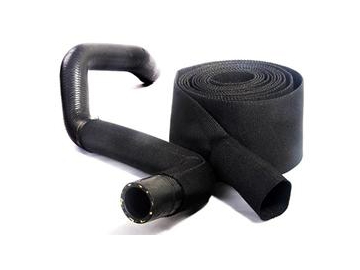

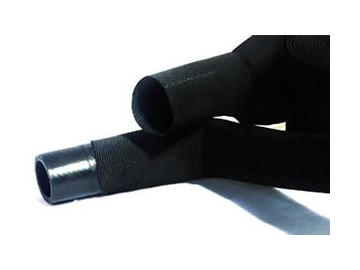

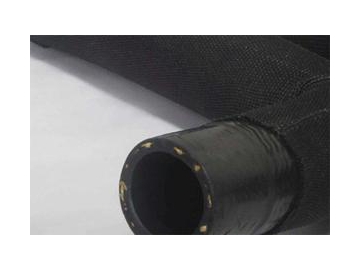

Heat Shrinkable Braided Sleeving (PET + PE)
Material: PET+PE
Working temperature: -40℃~120℃
Melting temperature: 240℃
Shrink ratio: 2:1
Certification: SGS, UL
Shrink temperature: 110℃
The heat shrinkable braided sleeving is made of environmentally friendly and nontoxic PET fiber and PE filaments. This braided sleeving can shrink its inner diameter to half of the primary inner diameter. It features an outstanding noise reduction, flexibility, abrasion resistance and heat resistance. This product can be easily installed within irregular tubes, and will reduce abrasion levels and noise levels of those tubes in severe environments.
Structure
Non-thermal shrinkage PET fiber is used as the warp material, while the thermal shrinkage PE material is used as the weft material.
Application

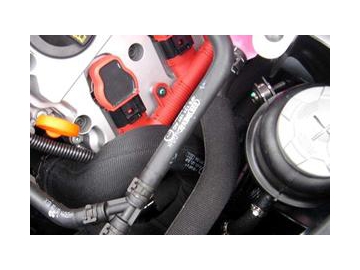

This heat shrinkable braided sleeving is primarily used in automobile water pipe and oil pipe manufacturing enterprises, as well as large machinery manufacturing enterprises.
| Model | Inner diameter before shrink(D) | Inner diameter after full shrinkage (d) | Package(L) | |
| MX-RS010 | 10mm | 5mm | 50m/reel | |
| MX-RS012 | 12mm | 6mm | 50m/reel | |
| MX-RS020 | 20mm | 10mm | 50m/reel | |
| MX-RS025 | 25mm | 12.5mm | 50m/reel | |
| MX-RS030 | 30mm | 15mm | 50m/reel | |
| MX-RS034 | 34mm | 17mm | 50m/reel | |
| MX-RS040 | 40mm | 20mm | 50m/reel | |
| MX-RS050 | 50mm | 25mm | 50m/reel | |
| MX-RS060 | 60mm | 30mm | 50m/reel | |
| MX-RS070 | 70mm | 35mm | 50m/reel | |
| MX-RS080 | 80mm | 40mm | 50m/reel |
Note: Please call or email us for other specifications.
