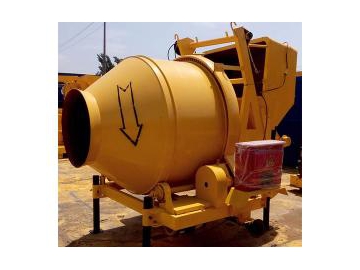

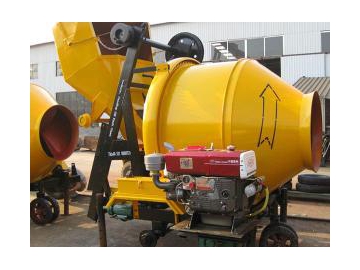

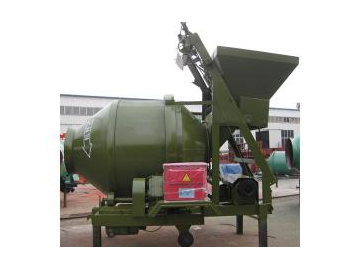

Drum Mixer

: http://janeoocn.com/9e-drum-mixer.html

Model: JZC350, JZC500, JZR350, JZR500;

Features:
Our concrete drum mixer which is composed of mixing unit, feeding unit, water supply unit, frame and electric control unit, features novel and reliable structure, high productivity, good mixing quality, light weight, attractive appearance and easy maintenance.

Applications:
The drum mixer is widely used for common construction site, road building, bridge engineering and various prefabrication factories ranging from large, medium to small.

Technical Parameters

Model	JZC350	JZC500	JZR350	JZR500
Discharge capacity ( L )	350	500	350	500
Feeding capacity ( L )	560	800	560	800
Productivity ( m ³ /h )	12-14	15-20	12-14	15-20
Drum rotating speed ( r/min )	14.5	13.9	14.5	13.9
Max. aggregate size ( mm )	60	90	60	90
Power ( kW )	6.25	17.25	6.25	17.25
Total weight ( kg )	1920	2750	1920	2750
Boundary dimension ( mm )	2230x2550x3050	5250x2070x5425	2230 x 2550 x 3050	5250x2070x5425
All specification is subject to modification !
