Brake Shoes for Audi

: http://brakeparts-supply.com/Audi-brake-shoes-set.html

Picture	Factory No.	F/R	Diameter	Width	FMSI	OEM	Car Model
	CFS-0013	R	230	40	S712	357 698 525 CV	AUDI 100 (4A, C4) 2/90 - 6/94 AUDI 100 Avant (43, C2) 7/77 - 2/83 AUDI 100 Avant (4A,C4) 9/91 - 6/94 AUDI 500 (43, C2) 3/77 - 7/82 AUDI 500 (44, 44Q, C3) 8/89 - 7/91 AUDI 5000 Estate (44, 44Q, C3) 3/85 - 1/90

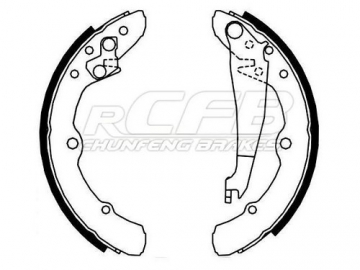

	CFS-0014	R	230	40	S496	431 698 525 X	AUDI 500 (44, 44Q, C3) 8/82 - 2/88 AUDI 5000 Estate (44, 44Q, C3) 3/85 - 1/90

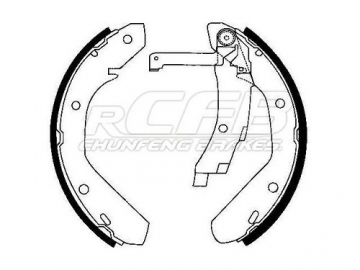

	CFS-0125	R	200	31	S453	331 609 537 A	AUDI 80 (80, 82, B1) 1/76 - 7/78

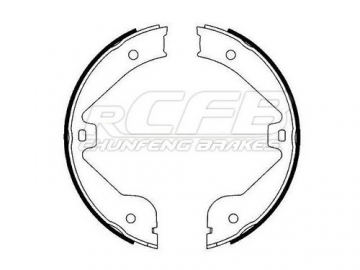

	CFS-0310	Parking	210	30	S870	955.352.925.00	AUDI Q7 (4L) 3/07 - 6/09

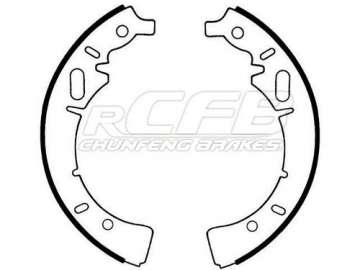

	CFS-0494	R	200	35	423-8058	423-8058	AUDI 100 LS 4-1.8L 2 bbl. 1970-1972 AUDI Super 90 4-1.8L 2 bbl. 1969-1972

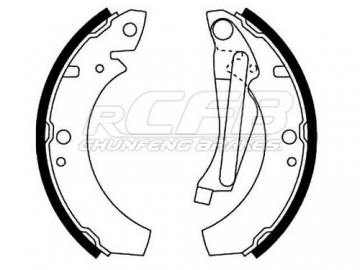

	CFS-0513	R	180	31	454-1316	171 609 537 B	AUDI 50 (86) 8/77 - 7/78 AUDI 80 (80, 82, B1) 9/75 - 7/78

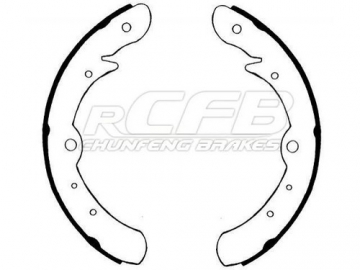

	CFS-0519	R	230	40	483-8116	431 609 537A	AUDI 5000 5-2.2L F/inj. WD 1978-1979 AUDI 5000 5-2.2L F/inj. WE 1978-1979

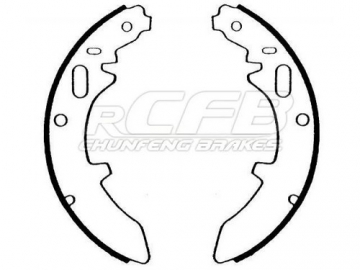

	CFS-0526	R	200	40	422-8129	422-8129	AUDI 100 LS 1974-1977 AUDI Fox 4-1.5L 2 bbl. XV 1973-1974
