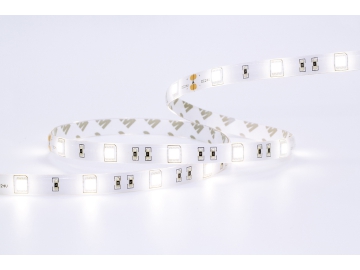

SMD Flexible LED Strip Light
SMD Flexible LED Strip Light
Features
1. Our SMD flexible LED striplights use an SMD 3528 Epistar light source from
2. It is available in different fixed colors and RGB.
3. Our SMD flexible LED striplight can be cut every 3 LEDs along the cut-mark.
4. It has
5. Two wires come out of both endsfor the 3528 SMD flexible led strip; DC plug and waterproof plug are alsoavailable.
6. The customer's brand or logo can be printedon the PCB board of the strip.
7. PCB color: White, yellow, and black are available
8. We have CE, RoHS, and LVD certification.
9. We offer a two-yearwarranty.
Technical Parameters of theSMD Flexible LED Strip Light
Part Number | Color | LED Type | LED Qty. | Color Temperature | Size(mm) | Max. Power | Work Voltage |
GM-3528UW120 | Warm white | Top SMD 3528 LED | 600 LEDs | 2700-3500K | 5000*8*2mm | 48W | DC12V/24V |
GM-3528UW120 | Cool white | 6000-6500K | |||||
GM-3528UR120 | Red | 620-630nm | |||||
GM-3528UG120 | Green | 515-525nm | |||||
GM-3528UB120 | Blue | 460-470nm | |||||
GM-3528UY120 | Yellow | 585-592nm |
Note
1. Before using the SMD flexible LED strip light, please make sure the LEDdriver is compatible with the LED strip.
2. With the LED amplifier, the2 roll strips (first
3. Please choose the right power supply for our LED strip.
Applications
Our SMD flexible LED strip light canbe mounted on windows, archways, canopies or corridors for architecturallighting. It is also suitable for decorative lighting for holidays, exhibitions,etc.
As a China-based SMD flexible LEDstrip light manufacturer, GangMing also offers 6W high power LED spotlight,5050 RGB LED strip light, PAR38 high brightness LED PAR light 9*2W, LED wallwasher, and
