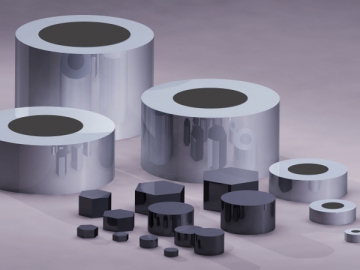

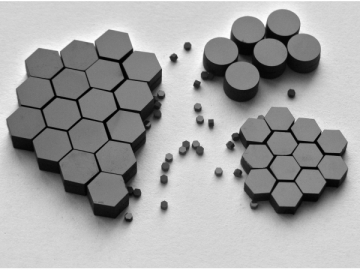

Self-Supported Diamond Die Blank

Description
The self-supporteddiamond die blank uses our own patent technology to conduct one side polishing. We also use unique checkout equipment to test the PCD material.  We can guarantee the quality of the PCDmaterial used to manufacture the die blank.

Features
1. The self-supported diamond die blank has a
regular and compact microstructure.
2. The self-supported diamond die blank rarely sees the abnormal grow ofgrains.
3. The diamond die blank feature
s easy grinding,easy polishing and high smooth finish.
4. The product features l
ong service life.
5. The self-supported diamond die blank is
particularly suitable for high speed wire drawing.

Application
The self-supported diamond die blank isused to draw copper wire, aluminum wire, tungsten wire, molybdenum wire,stainless wire and coated steel wire.

Technical Specifications

Specification of Self- supported Diamond Die Blank

ADDMA No.

Product No.

Dimensions (mm)

Available Grain Size (μm)

Concentricity (mm)

φd

φD

t

5

10

20

30

40

D6

CXD--R2510

2.5

--

1.0

--

D12

CXD--R3215

4.5

--

2.9

--

D15

CXD--R5225

7.6

--

4.0

--

D18

CXD--R5235

7.6

--

5.3

--

D21

CXD--R8040

12

--

8.0

×

--

D24

CXD--R9553

15

--

11.5

×

--


Material
The self-supported diamond die blank uses high quality PCD material.

Packaging

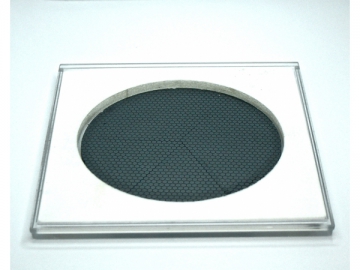

The self-supported diamond die blank is packaged in a plastic case/carton.

World is a professional manufacturer and supplier of self-supported diamond dieblanks, based in China.  We offer self-supported diamond die blanks,universal diamond scribing wheels,
Nikken glasscutters, etc.  Our high quality productsare offered at competitive prices.  Thefull chain of manufacturing PCD boring cutters and PCD blanks can be completedin China,even in one city.  Our lowermanufacturing cost saves your purchasing cost. More details of each product are shown on the page with description.
