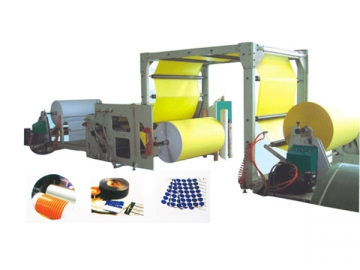

Hot Melt Adhesive Lamination Machine
Label Coating Machine/ Adhesive Tape Coating Machine

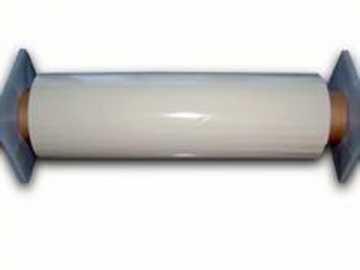

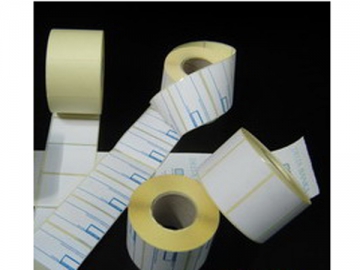

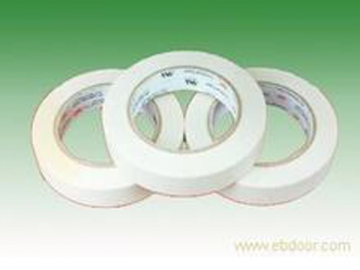

This JYT-H is designed with independent racks of these two unwinding rolls and its automatic PEC deviation correcting performance makes an ideal compositing result. Moreover, our product can load and unload materials with electric motion while unwinding. Compared with JYT-B type, it has the same properties. In addition, this product is suited for making double sticky tape, double foam filling adhesive tape, aluminum foil tape, fiber adhesive tape, medical dressing tape and low temperature hot melting film, and compositing various materials, like nonwoven fabric, filter material, medical material and so on.
Technical Parameters
Model | |
Coating Width | 400-2500mm |
Coating Weight | 10-200g/m² |
Coating Speed | 80m/min |
Unwinding Diameter | 1000mm |
Rewinding Diameter | 1000mm |
1set | |
Length | 8400mm |
Height | 2350mm |
