Dimensions (unit: mm)
Item Height Length Width
Size 2450 1840 1390
Main technical parameter
Item Parameter
Rated capacity (KVA) 330
Power supply (V/φ/HZ) 380/ 3 /50HZ
Primary current (A) 240
Rated duty cycle (%) 20
Secondary empty voltage (V) 13
Throat depth (mm) 290
Arm gap (mm) 490
Cylinder stroke(mm) 150
Electrode Dimensions (mm) φ30X60
Workpiece Dimensions (mm) φ30X30
Welding speed m/min (s/piece)(time/s) 4s/piece
Max. working pressure (kgf) 2000
Compressed air pressure (MPa) 0.6~0.7
Cooling water consumption (L/MIN) 12
Compressed servo motor power (KW) 3.5
Primary cable specification (MM2) 3*50 2*16
Max. Short Circuit Current of transformer (A) 58000

Feature of automatic welding machine for car wheel fastener
1. The automatic welding machine for car wheel fastener comes installed with a 330KVA Heron medium frequency DC power supply.
2. The welding system is outfitted with dual automatic loading systems.
3. The welding machine is equipped with a servo driven electric cylinder compression system.
4. Comes with a complete automatic assembly fixture system.

Introduction

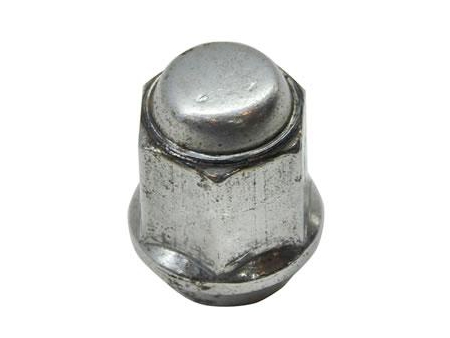

The automatic welding machine for car wheel fastener is constructed for the head welding of car wheel nuts and it is outfitted with a 440KVA Heron medium frequency DC power supply. It is also outfitted with a dual automatic loading system and an automatic assembly fixture system. The welding system is designed to replace traditional manual welding processes and improve safety and maximize efficiency.
