CNC Turning Lathe Machining Service

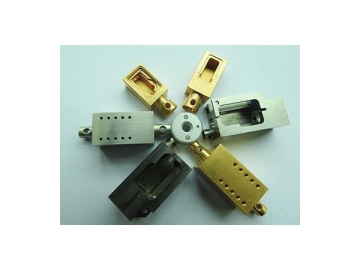

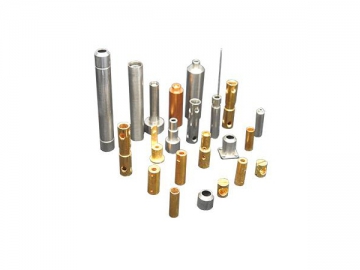

Material: brass/SS304/aluminum alloy
Product name: ordinary car partsMaterial: SUS303
Product name: hot runner componentsMaterial: SUS304

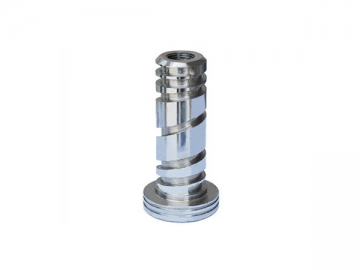

Product name: flow control components

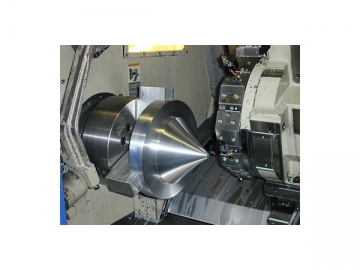

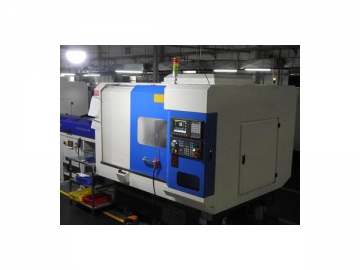

The CNC turning lathe of Asia America featuers high precision spindle units. The spindle motor adopts high performance servo motor which features fast machining speed and an adjustable width. The machine uses a high precision preload ball screw so that the linkage mechanism and motor can realize seamless connection. So the transmission rigidity is high so that it can realize μ grade precision turning. It adopts component tools which features fast tool changing so that the machining period can be effectively shortened.
The X, Y, Z axis of the CNC turning lathe features an imported linear guideway which can improve machining precision while reducing abrasion between lathe and cutter. It can accomplish one-line or multiple-line machining of pits, grooves, inner and external boring, spherical surface, R taper angle, curve shape, cone shape, end surface, metric and inch screw thread. So this machine can satisfy the order requirements of customers with multiple kinds and large batch of order.
Materials that can be machinedAluminum alloy: 2024, 5052, 6061, 6063, 6082, 7075.
Copper alloy: brass, bronze, BeCu, pure copper.
Special alloy: TA2, TC4, 4J29 (KOVAR), 4J36 (INVAR), high temperature alloy (INCONEL 718, 625).
Stainless steel: sus303, sus304, sus316, sus420, sus440c, sus630.
Engineering plastics: PP, PVC, PI, POM, PTFE, PEEK.
| ITEM | Description | Qty | Model | Vendor | Size | Accuracy |
| 1 | CNC LATHE | 10 | STS-46 | SHENTESI | Slant (Φ250*350L) | 0.01mm |
| 2 | CNC LATHE | 10 | ST-52M | XINSHUO | 8 position turret+Y axis living tool (Φ190*370L) | 0.01mm |
| 3 | CNC LATHE | 4 | DL-20M | DALIAN LATHE | 12 position turret (Φ400*1000L) | 0.01mm |
| 4 | CNC LATHE | 1 | SLC-20 | AKIRA-SEIKI | 12 position C axis turret living tool (Φ250*350L) | 0.01mm |
