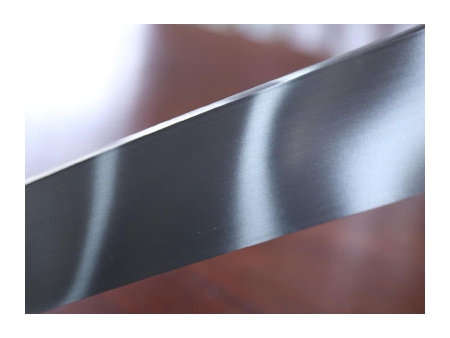

Economical Carbon Steel Doctor Blade, Item ST-10 Doctor Blade
- The doctor blade is made using quality SK4 steel from Japan.
- It has no start-up time due to the technically advanced lamella tip profile.
- This quality carbon steel doctor blade provides good printing effect.
- Low cost for this type of doctor blade makes it ideally suitable for frequent replacement.
- After testing, the printing on the flexible packaging can reach more than 50,000m using this doctor blade.
| Brand | DEKEJIE | Category | Standard carbon steel doctor blade |
| Type | ST | Printing speed | ≤140m/min |
| Material thickness | 0.152-0.203mm | Packing | 100m/box |
| Suggested application | Normal gravure printing | ||
| Standard size | 10, 30, 40, 50, 60mm | ||
Hardness HV: 590-610
Straightness: max. 0.15mm/1m
Tensile strength: 1960 - 2030 Mpa
- Standard lamella

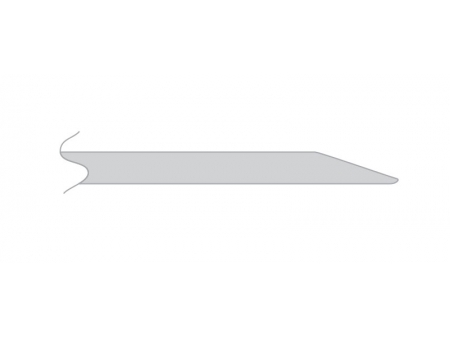

- Bevel

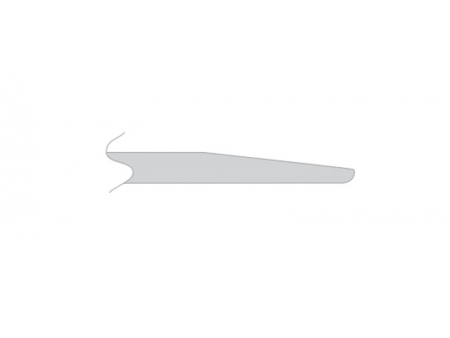

- Wing lamella
