The electric burner stove and electric griddle pan are common household appliances. Because of their common use, durability and electrical safety are particularly important.

In order to ensure the safety and durability of the products, in addition to requiring manufacturers to strictly comply with international standards for production, the quality of the core components such as temperature controller and the stove head itself are also crucial. Therefore, Haoying strictly selects the electrical components used in the products.

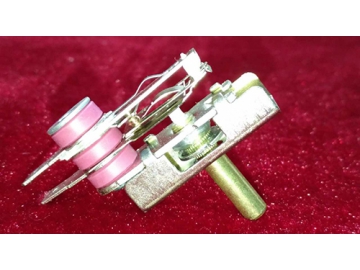

The thermostats used in our products are divided into adjustable types and snap action types. Both of the thermostats have the characteristics of non-arcing , long service life, free from radio interference, accurate temperature control and so on.

The temperature controller for 15A / 120V has been certified by UL authentication, and it can be used repeatedly around 100000 times.

The temperature controller for 10A / 230V has been certified by TUV／CQC authentication, and it can be used repeatedly around 35000 times.

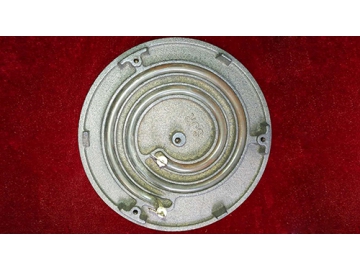

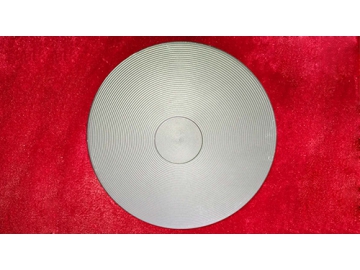

The cast iron electric griddle pan uses a tubulose electrical heating element as its heating unit and high-quality stainless steel as for its shell. It is a kind of electric heater with good thermal conductivity and uniform heating. The heating temperature is generally controlled between 150～600 ℃.

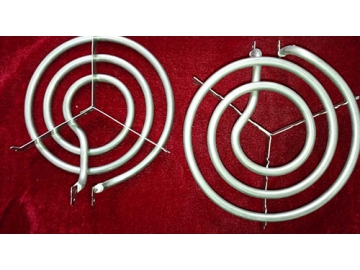

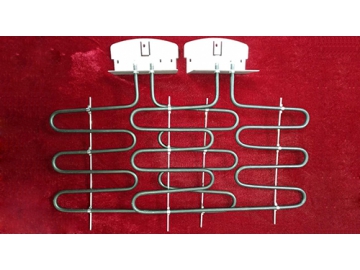

The electric heat pipe uses stainless steel as its shell. The high resistance Ni-Cr/Fe-Cr alloy wires are evenly distributed along the central axis inside. The heat-resistant, heat-conductive and insulating magnesia powder is tightly packed in the voids. The ends of the pipe are sealed with silica gel or ceramic to ensure that the magnesia powder will not leak.

The service life of the electric heat pipe is over 1000 hours, ensuring the durability of the electric skillet and electric griddle pan.

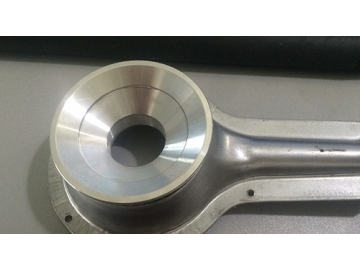

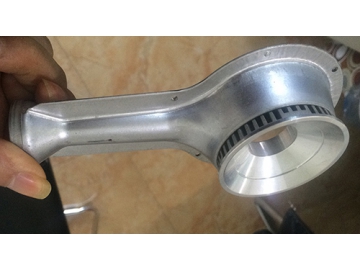

The furnace end is made from aluminum in a one-step die casting process which is simple in structure and light in weight. The furnace end is not easily deformed and will not rust even when burned at high temperatures for a long period of time. The angle of the gas outlet of the distributor, which is used closely with the furnace end, is designed 45°, so that the fire can spray strongly along the angle of 45°, which will mostly enhance the effective contacting area between the flame and the pot. This design will increase the heating speed by 7% ~ 10%, making the combustion quality more stable and increasing the thermal efficiency.

In order to facilitate users to enjoy cooking in the harsh environment, our aluminum furnace end is equipped with an electronic pulse ignition device, which can effectively prevent the burner from having difficulty lighting in high humidity. The total discharge time of the electronic pulse ignition is only 6-15 seconds, and it can ignite liquid fuel directly, such as atomized heavy oil.
