FTTH optical cable extruder line

FTTH optical cable extruder line
FTTH optical cable extruder line
FTTH optical cable extruder line
Applicaiton

FTTH optical cable extruder line is used to extrude FTTH optical cable, indoor optical cable

Sheath material: LSZH, HDPE , PBT or NYLON

Technical Parameter
Production speed 60-100m/min
Steel wire diameter φ1.0mm~φ1.6mm
Pay-off reels 1 reel
Pay-off tension 10~80N
Pay-off reel size φ630~800mm
FRP diameter φ0.4mm-φ1.2mm
FRP pay-off reels 2 reel
FRP pay-off tension 4~10N
FRP pay-off reel size φ400mm
Fiber pay-off reels 4 reel
Fiber pay-off tension 0.3~1.5N
Fiber pay-off reel size 25km, 50km reel
Take-up tension 5~20N
Take-up reel size φ400~500mm
Additional loss ≤0.02db/km
Production line length 40m
Line configuration

1.800mm steel wire pay-off device
2.Steel wire pay-off tension device
3.FRP pay-off device

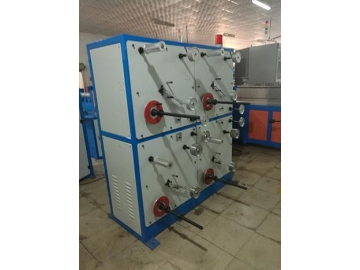

4.Fiber pay-off device

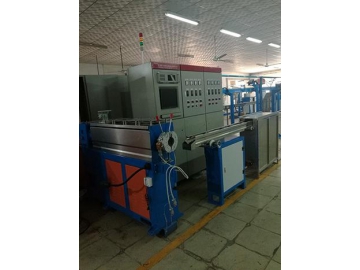

5.50mm extruder
6.Hot water tank
7.Cold water trough

8.Drying device
9. Diameter gauge
10.630mm capstan
11.Accumulator
12.Double reel take-up
13. Electric control system
