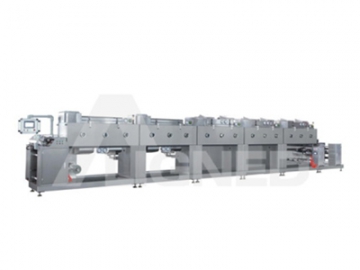

Automatic Oral Thin Film Making Machine with 10m Oven, OZM-340
The oral film making machine is used for evenly coating a layer of liquid material on the surface of the reel base roll. The solvent (moisture) is rapidly evaporated and dried through the drying channel. And wind up after cooling (or composite with another materials). Then, get the final products of the film (composite film).
Features of Oral Thin Films
High dosing accuracy, quick-dissolving, fast release, no swallowing difficulty, high acceptance by elderly and children, small size convenient to carry.
Technical Specifications
| Project | Parameter |
| Model | OZM-340/10 |
| Oven Length | 10M |
| Max Casting Width | 360mm |
| Roll Width of Film | 400mm |
| Running Speed | 0.1m-1.5m/min (depends on formula and process technology) |
| Temperature Control | 30~80℃±2℃ |
| Power Supply | 380V 50/60HZ100KW |
| Overall Dimension | L×W×H: 14000*1620*2050mm |
| Weight | About 8000KG |
