Automatic Capsule Filling Machine, NJP Series Manufacturer

Automatic Capsule Filling Machine, NJP Series

: http://pharmacy-machines.com

NJP series automatic capsule filling machine features innovatively intermittent rotary operation. Designed with a dosing disk, the capsule filler automates all processes including separation, filling, defective capsule rejection, capsule locking, and finished capsule ejection. Featuring a fully enclosed index table, the capsule machine is ideal pharmaceutical equipment for manufacturing hard capsules in the pharmaceutical and food industry.

Features

Capable of filling capsules with powder, granules or pellets;
Using a vacuum capsule positioning system ensures the capsules are placed and filled accurately;

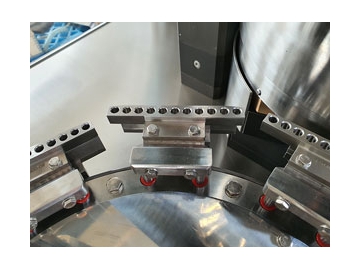

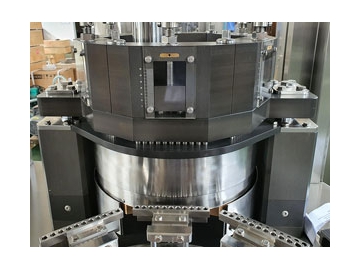

Fully enclosed index table with 10 stations for clean and efficient production;
Filling weight, speed and capsule length can be freely adjusted;

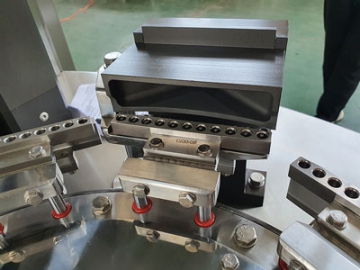

Modular powder slug filling mechanism is easy to disassemble for cleaning;
Features a superior quality transmission mechanism with high performance, significantly reducing vibration during machine running. This ensures high stability and long service life;
Main electrical control components are purchased from the well-known manufacturers in the world. Advanced control technology allows for precise control;
With a LCD touch screen, the capsule filler is easy to operate with high accuracy.

Technical Specifications

Model	NJP-200	NJP-400	NJP-800	NJP-1200	NJP-2300	NJP-3500
Capacity(Capsules/h)	12000	24000	48000	72000	138000	210000
Machine weight(kg)	700	800	900	1100	1500	2200
Overall dimension(mm)	6106801800	7607801800	8408201900	8609401900	101010802000	117015602000
Power supply	380/220V 50Hz	380/220V 50Hz	380/220V 50Hz	380/220V 50Hz	380/220V 50Hz	380/220V 50Hz
Total power(KW)	3	3	4	5	8	10.5
No. of filling bores	2	3	6	9	18	25
Vacuum system	20m3/h-0.04-0.08Mpa			40m3/h-0.04-0.08Mpa	63m3/h-0.04-0.08Mpa	120m3 /h-0.04-0.08Mpa
Applicable capsule size	00, 0, 1, 2, 3, 4, 5#
Fill accuracy	±2.5%-±3.5%
