Aseptic Filling and Closing Machine (for Eye-drop), YHG-100 Series Manufacturer

Aseptic Filling and Closing Machine (for Eye-drop), YHG-100 Series

: http://pharmacy-machines.com

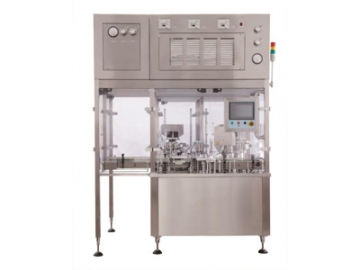

YHG-100 series aseptic filling and closing machine is specially built for filling, stoppering and capping of eye-drop and nasal spray vials.

Features

Production safety performance is implemented on the basis of European standards, in compliance with the requirements of GMP;
High efficiency filtration unit efficiently maintains sterility and cleanliness for sterile areas;
The capping station is completely isolated from liquid filling zone, special gloves are required in manual operation to protect the sterile areas from being contaminated;
Fully automatic accomplishing of bottle feeding, filling, stoppering and capping processes through mechanical, pneumatic and electric systems;
The filling station is equipped with high precision ceramic rotary piston pump or peristaltic pump, servo control ensures a high speed, high accuracy and drip-free filling process;
The manipulator is used for stoppering and capping, it features precise positioning, high pass rate and high efficiency;
The capping mechanism uses German clutch or servo drive to control the torque of capping properly, efficiently protecting the caps from being damaged after tightening;
Automatic “No Bottle - No Fill” and “No Stopper - No Cap” sensor system, unqualified products will be automatically rejected;

Technical Specifications
