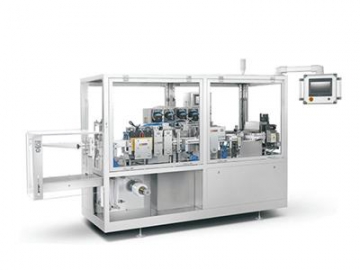

Ampoule Filling and Sealing Machine, DGS-240P5
If you’re packing liquid drugs, then most definitely, you need an ampoule filling machine. It provides an effective way of filling and sealing ampoules. An automatic pharmaceutical ampoule filling and sealing machine will increase productivity, efficiency, and accuracy.
Features
- High speed and high precision motion controller
- Stepless frequency control of motor speed control
- Automatic unwinding, roll film slitting and folding
- The photoelectric device is designed to realize positive and negative pattern alignment.
- Meets high standard of packaging requirements.

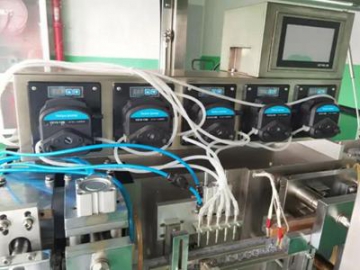

- High filling accuracy is ensured by using mechanical piston pump and digital peristaltic pump.
- There is no drip, no bubble, no overflow during filling.
- The bottom of the bottle is flat, which could stand.
- Automatic stop when door is open.
Technical Specifications
| Model | DGS-118P5 | DGS-240P5 |
| Max Forming Depth | 16mm | 12mm |
| Cutting Frequency | 0-25 times/min | |
| Packing Material | PET/PE, PVC/PE | |
| Packing Roll | Two rolls | One roll |
| Filling Volume | 1-50ml | 1-100ml |
| Filling Head | 5 heads | |
| Power | 7kw | |
| Voltage | 220v-380v/50Hz | |
| Weight | 900kg | 1000Kg |
| Outer Size L×W×H | 2300×850×1500(mm) | 3380×950×1800(mm) |
