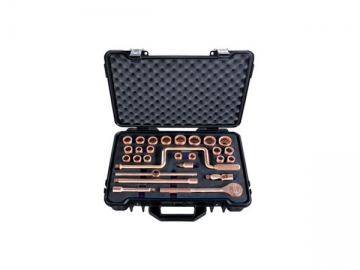

101I 1/2” dr Non Sparking Socket Set-28pcs

101I 1/2” dr Non Sparking Socket Set-28pcs
101I 1/2” dr Non Sparking Socket Set-28pcs
Request a Quote

101I 1/2" dr non-sparking socket set has been subjected to drop forging process. The socket is usually attached to the ratchet via a square fitting that contains ball detent. The ratchet assembly then is connected to the metal handle to form a complete socket wrench. The socket is commonly sold in one of the two types: either six-point or four-point socket that fits on the hexagonal or square head of a bolt or nut to tighten or loosen it.

Gross weight of the tool kit that comprises a complete set of beryllium copper sockets and accessories is 6370g and aluminum bronze sockets and accessories, 6355g.

NumberContents
101ISocket: 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm, 24mm, 26mm, 27mm, 28mm, 30mm, 32mm

Standard Ratchet Wrench Metal Handle: 245mm
Sliding T-Handle: 250mm
Speed Handle: 400mm
Drive Extension (Extension Bar): 125mm, 250mm
Universal Joint: 80mm
Screwdriver Socket: 52mm
Socket Case

Note: The square fitting attached to the ratchet is also called the drive, since it functions as the drive shaft that transmits the torque from the metal handle to the socket for rotation. Therefore, the drive extension is also known as the square fitting extension, extended arm, or simply extension that is attached to the socket on one end and the ratchet on the other. It allows easy access to the nut that is recessed or otherwise unreachable with a standard wrench.
