YIHUA-852D Hot Air Rework Station with Soldering Iron Manufacturer

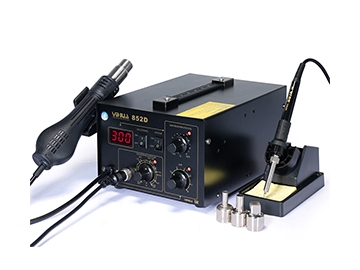

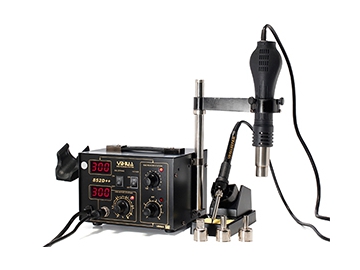

YIHUA-852D Hot Air Rework Station with Soldering Iron

Description

YIHUA-852D hot air rework station with soldering iron is a 2 in 1 soldering rework station that is composed of high-grade brushless fan type air gun and qualified soldering iron.
The air gun is in line with the standard of brushless fan. Its service life is 20,000 hours. It offers a large amount of soft wind. And the wind speed is uniform.
Inside the air gun, there is a heater which is highly stable, durable for being made of ceramics.
This soldering rework station applies the anti-twist ceramic heater which allows for good temperature stability. The heater can be used for a long time.

Features

Compared to the YIHUA-852D series, the YIHUA-852D hot air rework station with soldering iron is equipped with the circuit board that has been optimized in performance, structure, and package. This circuit board helps prevent the transportation damage, and greatly reduce the transportation fees.
As required, you can install an air gun fixed support which well suits the preheat board. Therefore, you can easily dismantle the large chip.
Different from the YIHUA-852D series, the YIHUA-852D series has LED display for ensuring the precise air gun and iron work temperature.

Parameter

Machine
Rated Voltage	AC 220V±10% 50Hz
Machine Power	700W±10% (Maximum)
Working Environment	0~40℃ Relative Humidity< 80％
Storage Environment	-20~80℃Relative Humidity< 80％
Machine Size	25.518.812.5cm
Weight	3.18KG
Parts
Item	Hot air gun	Soldering iron
Working Voltage	AC 220V±10% 50Hz	AC 26V±10% 50Hz
Output Power	650W	50W
Temperature Range	100℃~480℃	200℃~480℃
Mode of Airflow	Brushless fan	---
Airflow	120L/min (max.)	---
Temperature Stability	±15℃ (static)	±10℃ (static)
Display	Two LED (red/green)	---
Heater	Heating core ceramics heater	Common metal heater
Tips to Ground Impedance	---	< 2Ω
Tips Voltage to Ground	---	< 2mV

Related Names
Powered Soldering Kit | BGA Reballing Station | Solder Desolder Station
