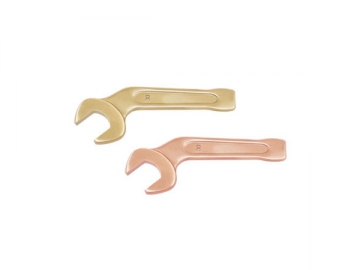

141B Non Sparking Bent Striking Wrench
The 141B non sparking bent striking wrench works the same way as the 141 model. It is die-forged from copper alloy that not only gives additional strength to the structure but also helps with the ability to withstand a long time of use while delivering outstanding mechanical performance. Its spark-proof feature makes the wrench suitable for use in areas where potential flammable or explosive hazard might occur.
Usually used with a hammer, the wrench can provide large amount of torque to the large-sized hex heads of fasteners for loosening and tightening. It is able to fit in tight spaces. The griping face of the jaw is displaced to a 45 degree angle relative to the line of handle. This displacement allows the wrench to obtain larger areas for rotation. Additionally, the product conforms to the Q/ZBF-141B standard.
| Model | S mm | L mm | Be-Cu g | Al-Cu g |
| 141B-17 | 17 | 125 | 160 | 150 |
| 141B-19 | 19 | 125 | 160 | 150 |
| 141B-22 | 22 | 135 | 180 | 160 |
| 141B-24 | 24 | 150 | 245 | 220 |
| 141B-27 | 27 | 175 | 420 | 380 |
| 141B-30 | 30 | 190 | 480 | 440 |
| 141B-32 | 32 | 190 | 480 | 440 |
| 141B-34 | 34 | 200 | 600 | 540 |
| 141B-36 | 36 | 210 | 680 | 620 |
| 141B-38 | 38 | 230 | 980 | 800 |
| 141B-41 | 41 | 230 | 950 | 860 |
| 141B-46 | 46 | 250 | 1270 | 1150 |
| 141B-50 | 50 | 275 | 1380 | 1250 |
| 141B-55 | 55 | 305 | 1780 | 1620 |
| 141B-60 | 60 | 315 | 2560 | 2350 |
| 141B-65 | 65 | 335 | 3000 | 2750 |
