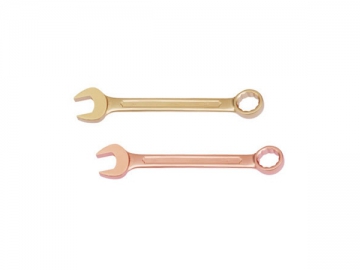

135 Non Sparking Combination Wrench
The 135 non sparking combination wrench conforms to the German DIN3113 standard. It is designed with both a closed and open end that fit over same-sized hex or square heads of nuts or bolts. Those two gripping faces are displaced to a 15 degree angle relative to the metal handle, offering easy operation. The wrench is made of steel that has been subjected to drop forging process. Constructed for longevity, high tensile strength, and stable mechanical properties, the product is well suited for use in various flammable or explosive atmospheres.
| Model | S inch | L mm | Be-Cu g | Al-Cu g |
| 135A-1002 | 1/4 | 105 | 22 | 20 |
| 135A-1004 | 5/16 | 120 | 37 | 34 |
| 135A-1006 | 3/8 | 135 | 55 | 50 |
| 135A-1008 | 7/16 | 150 | 75 | 70 |
| 135A-1010 | 1/2 | 175 | 125 | 115 |
| 135A-1012 | 9/16 | 175 | 122 | 110 |
| 135A-1014 | 19/32 | 195 | 160 | 145 |
| 135A-1016 | 5/8 | 195 | 155 | 140 |
| 135A-1018 | 11/16 | 195 | 155 | 140 |
| 135A-1020 | 3/4 | 215 | 210 | 190 |
| 135A-1022 | 13/16 | 230 | 225 | 200 |
| 135A-1024 | 7/8 | 245 | 250 | 225 |
| 135A-1026 | 15/16 | 265 | 260 | 230 |
| 135A-1028 | 1 | 265 | 260 | 230 |
| 135A-1030 | 1-1/16 | 290 | 420 | 380 |
| 135A-1032 | 1-1/8 | 320 | 560 | 500 |
| 135A-1034 | 1-3/16 | 320 | 560 | 500 |
| 135A-1036 | 1-1/4 | 340 | 670 | 600 |
| 135A-1038 | 1-5/16 | 360 | 850 | 750 |
| 135A-1040 | 1-3/8 | 360 | 890 | 800 |
| Model | S mm | L mm | Be-Cu g | Al-Cu g |
| 135-6 | 6 | 105 | 22 | 20 |
| 135-7 | 7 | 120 | 37 | 34 |
| 135-8 | 8 | 120 | 37 | 34 |
| 135-9 | 9 | 135 | 55 | 50 |
| 135-10 | 10 | 135 | 55 | 50 |
| 135-11 | 11 | 150 | 75 | 70 |
| 135-12 | 12 | 150 | 75 | 70 |
| 135-13 | 13 | 175 | 122 | 110 |
| 135-14 | 14 | 175 | 122 | 110 |
| 135-15 | 15 | 195 | 160 | 145 |
| 135-16 | 16 | 195 | 155 | 140 |
| 135-17 | 17 | 195 | 155 | 140 |
| 135-18 | 18 | 215 | 210 | 190 |
| 135-19 | 19 | 215 | 210 | 190 |
| 135-20 | 20 | 230 | 225 | 200 |
| 135-21 | 21 | 230 | 225 | 200 |
| 135-22 | 22 | 245 | 250 | 220 |
| 135-23 | 23 | 265 | 265 | 233 |
| 135-24 | 24 | 265 | 260 | 230 |
| 135-25 | 25 | 265 | 260 | 230 |
| 135-26 | 26 | 290 | 420 | 380 |
| 135-27 | 27 | 290 | 420 | 380 |
| 135-30 | 30 | 320 | 560 | 500 |
| 135-32 | 32 | 340 | 670 | 600 |
| 135-34 | 34 | 360 | 850 | 750 |
| 135-35 | 35 | 360 | 890 | 800 |
| 135-36 | 36 | 360 | 890 | 800 |
| 135-38 | 38 | 430 | 1440 | 1300 |
| 135-41 | 41 | 430 | 1440 | 1300 |
| 135-46 | 46 | 480 | 1890 | 1700 |
| 135-50 | 50 | 520 | 2220 | 2000 |
| 135-55 | 55 | 560 | 2460 | 2230 |
| 135-60 | 60 | 595 | 3300 | 2950 |
| 135-65 | 65 | 595 | 3250 | 2900 |
| 135-70 | 70 | 630 | 4550 | 4100 |
