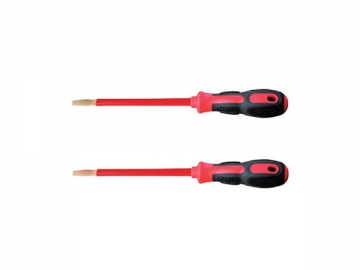

265 Non Sparking Insulated Slotted Screwdriver
The 265 non sparking insulated slotted screwdriver is specifically designed for use in live-line work. It is employed to tighten or loosen slotted screws that have been energized, and is able to withstand a maximum voltage of 1000v.
This tool is one of the most common types of screwdrivers. It features a flat headed tip set at the end of the shaft, opposite the plastic handle. The slotted screwdriver allows screws to be twisted tightly into place. It usually comes with a flat wedge-shaped tip to fit into a slot or notch in the head of a screw. One primary advantage of this product is its non-sparking feature, which makes the tool suited for use in hazardous areas as it will not produce sparks resulting from impact, collision, friction, or strike that might lead to unwanted damage.
Features
1. Cold rolled construction
2. Suitable for live-line working applications.
| Model | L1 inch | L1 mm | L mm | H mm | B mm | Be-Cu g | Al-Cu g |
| 265-1002 | 2 | 50 | 134 | 0.4 | 3 | 35 | 33 |
| 265-1004 | 2 | 50 | 134 | 0.5 | 4.5 | 43 | 40 |
| 265-1006 | 3 | 75 | 159 | 0.4 | 3 | 35 | 32 |
| 265-1008 | 3 | 75 | 159 | 0.5 | 4 | 45 | 42 |
| 265-1010 | 3 | 75 | 180 | 0.6 | 5 | 70 | 65 |
| 265-1012 | 4 | 100 | 184 | 0.5 | 4 | 45 | 42 |
| 265-1014 | 4 | 100 | 205 | 0.6 | 5 | 75 | 70 |
| 265-1016 | 4 | 100 | 215 | 0.8 | 6 | 85 | 80 |
| 265-1018 | 5 | 125 | 240 | 0.8 | 6 | 100 | 95 |
| 265-1020 | 6 | 150 | 265 | 0.8 | 6 | 110 | 105 |
| 265-1022 | 6 | 150 | 265 | 1 | 7 | 125 | 120 |
| 265-1024 | 6 | 150 | 277 | 1.2 | 8 | 140 | 135 |
| 265-1026 | 8 | 200 | 327 | 1.2 | 8 | 165 | 155 |
| 265-1028 | 10 | 250 | 377 | 1.4 | 9 | 185 | 175 |
| 265-1030 | 10 | 250 | 377 | 2 | 11 | 260 | 245 |
| 265-1032 | 12 | 300 | 427 | 1.8 | 10 | 245 | 230 |
| 265-1034 | 12 | 300 | 427 | 2 | 11 | 290 | 275 |
| 265-1036 | 14 | 350 | 477 | 2 | 11 | 320 | 300 |
| 265-1038 | 16 | 400 | 550 | 2.4 | 12 | 450 | 430 |
As well as providing the above models, we also can tailor-make the product according to customer-specific requirements or based on the technical drawings customers provide us with.
