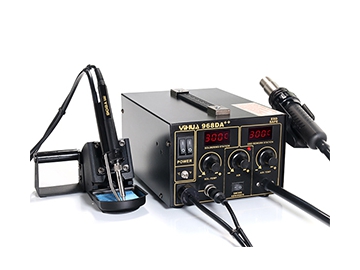

YIHUA-968DB /968DA /968DA Soldering Rework Station with Smoke Absorber
- SAMSUNG MCU and PID program are applied for the real-time tracking and correction of the air gun temperature and soldering iron temperature. Therefore, YIHUA-968DB soldering rework station with smoke absorber offers highly stable temperature.

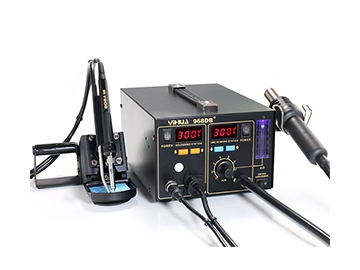

- The 968DB type has an intuitive wind speed ball to dynamically indicate the air pump air flow.
- YIHUA968DA /968DB soldering rework station has the Celsius / Fahrenheit temperature display function. The user can choose according to the use habit.
- YIHUA968DA soldering rework station has the automatic / manual conversion function .
- The soldering iron has the smoke absorption function. The smoke generated by the soldering iron will be absorbed and filtered by the dust proof piece. Such function can create a healthy, clean working environment for the users.
- If necessary, the YIHUA-968DB /968DA /968DA soldering rework station can be matched with a vacuum pencil. The vacuum pencil is used to such up IC.
| Machine Unit | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Power | 720W±10% (Max.) | |
| 300 ℃Thermostat Power (high-speed PID programmable energy saving) | 250W ±10% | |
| Working Environment | 0 ~ 40℃ relative humidity < 80% | |
| Storage Environment | -20 ~ 80℃ relative humidity < 80% | |
| Dimensions | 255*188*125mm | |
| Weight | 4.83KG | |
| Parts | ||
| Item | Hot air rework | Soldering iron |
| Work Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 550W | 75W |
| Temperature Range | 100℃ ~ 480℃ | 200℃ ~ 480℃ |
| Airflow Type | Diaphragm pump spiral wind | --- |
| Air Flow | 28L/min (Max.) | --- |
| Temperature Stability | ±1℃ (Static) | ±1℃ (Static) |
| Display Type | LED display | LED display |
| Temperature Correction Type | The PID digital program proofreading | The PID digital program proofreading |
| PID Temperature Correction Cycle | Rapidly 20ms | High-speed 100ms |
| Heating Elements | Ceramic skeleton heater | Imported heater |
| Tip Ground Impedance | --- | < 2Ω |
| Tip of Ground Voltage | --- | < 2mV |
Application
YIHUA-968DB soldering rework station with smoke absorber is suitable for soldering or de-soldering a variety of electronic components, including SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. This equipment can be used for thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc.
This soldering station is commonly found in the following areas:
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
Related Names
Hot Air Soldering Gun Kit | Electronics Rework Station | Lead Free SMT Soldering Station
