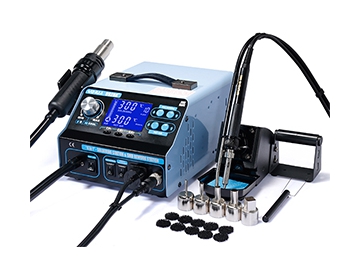

YIHUA-992DA/992DA Soldering Rework Station with Smoke Absorber

YIHUA-992DA/992DA  Soldering Rework Station with Smoke Absorber
YIHUA-992DA/992DA  Soldering Rework Station with Smoke Absorber
YIHUA-992DA/992DA  Soldering Rework Station with Smoke Absorber
Request a Quote
Features
  • YIHUA-992DA soldering rework station with smoke absorber has a large LCD display which allows for dynamic wind speed display. The indication is clear at a glance.
  • Because of the SAMSUNG SCM and PID program, this equipment can achieve the real-time tracking and correction of air gun temperature and soldering iron temperature. The temperature is highly stable within a fluctuation range of ± 1℃.
  • YIHUA-992DA soldering rework station with smoke absorber comes with fast temperature rising. Only 10 seconds is required for the temperature rising from 30℃ to 300℃.
  • Both the air gun and soldering iron are designed with the -50℃ to 50℃ temperature compensation function. In addition, they have the Fahrenheit / Celsius temperature conversion function.
  • The air gun has the manual / automatic mode switching function, while the soldering iron has the sleep function with the time setting range of 0-99 minutes.
  • Our soldering rework station is highly stable. Its handles apply the high temperature resistant silicone wire. The silicone wire has no damage within 30s when touching the soldering tips of 300℃. Besides that, this equipment employs the stainless steel tube and latest ceramic skeleton heater.
  • The soldering iron has the smoke absorption function. Smoke generated by the soldering iron will be immediately sucked away. Such function aims to achieve the air purification effect, thereby creating a healthy, environmental environment for the users.
  • If necessary, the YIHUA-992DA soldering rework station with smoke absorber can be equipped with a vacuum suction pen, which is used to draw the IC. Before using, you need to unplug the soldering iron suction tube from the soldering iron interface, and then install the vacuum suction pen.
  • Not to mention, this soldering rework station has the highest security. With the ABS fan antilock function, the system will immediately cut off the air gun power when the air fan is out of control. Therefore, the user’s security and environmental safety can be further ensured.
  • The iron holder is made of ferroalloy. Its bottom is fixed with sponge. Additionally, the iron holder seat is more convenient to sue with a solder wire fixed axis.
  • The machine part of the device has a self-test function. It can automatically protect itself from over-temperature, short-circuit, open circuit, over load, etc.
  • There is a whole power switch behind the machine. Please turn off the main switch so as to save power and ensure safety, if the machine is not intended to use for a long time.
  • YIHUA992DA have all above YIHUA 992DA function, also add to below function:
    a) Add to three storage sections CH1/CH2/CH3, each storage segment can store all the features of the current machine (e.g.: airflow, temperature,air gun manual/automatic mode, iron sleep time, temperature correction ...... which is currently on
    display all function values can be stored), you can quickly switch between each storage segment.
    b) Airflow adjustment knob add to cool/hot air function ,through the knob at entry/press out the implementation.Cool air is not heated wind, can be used to cool components (such as circuit boards, components, etc.) temperatures.
Parameters
Machine Unit
Rated Voltage AC 220V±10% 50Hz
Power 720W±10% (Max.)
300℃ The thermostat power of (high-speed PID program, energy saving) 250W ±10%
Working Environment 0 ~ 40℃ relative humidity < 80%
Storage Environment -20 ~ 80 ℃ relative humidity < 80%
Body Size 255*188*125mm
Weight 5.11KG
Parts
Item Hot air rework Soldering iron
Work Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 75W
Temperature Range 100℃~ 480℃ 200℃~ 480℃
Airflow Type Diaphragm pump ---
Air Flow 28L /min (Max.) ---
Temperature Stability ±1℃ (Static) ±1℃ (Static)
Display Type LCD display LCD display
Temperature Correction Type The PID digital program proofreading The PID digital program proofreading
PID Temperature Correction Cycle Rapidly 20ms high-speed 100ms
Heating Elements Ceramic skeleton heater Imported heater
Standard Nozzles/Tips (10mm, 8mm, 5mm, 3mm, 13mm) 5 PCS nozzles B
Tip Ground Impedance --- < 2Ω
Tip of Ground Voltage --- < 2mV

Application
YIHUA-992DA soldering rework station with smoke absorber has a wide application range.
It is suitable for soldering or de-soldering a variety of electronic components, such as SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. This equipment can be used for thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding etc.

Our soldering station is widely used in the following areas:
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
