YIHUA-859, YIHUA-869 Hot Air Rework Station Manufacturer

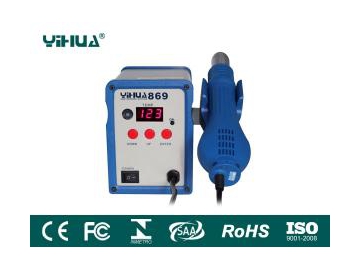

YIHUA-859, YIHUA-869 Hot Air Rework Station

: http://yihua-soldering.com/product-3-1-6-hot-air-rework-station-en/147677/index.html

Features

Small in size, YIHUA-859 or YIHUA-869 hot air rework station occupies less space and requires less transportation cost.
Due to the SAMSUNG SCM and microcomputer PID program, the air gun temperature can be real-time tracked and corrected, thus to guarantee the stable temperature.
Our YIHUA-859 or YIHUA-869 hot air rework station has a unique knob type temperature adjustment / programmable thermostat settings.
YIHUA-869 air gun handle cable uses silicone wire which is resistant to high temperature. When contacting with the 300℃ soldering iron tips, the silicone line has no damage within 30 seconds.
Its air gun handle applies the ceramic skeleton heater that is featured with good durability and high heating efficiency.
Made of high grade stainless steel, the handle tube and nozzles not only come with good thermal conductivity, but also have the strong antioxidant performance.
Air gun handle of the hot air rework station is designed with safety protection function. When power on, the equipment could start work properly only after the handle has been placed on the rack.

Parameters

Operating Voltage	AC 220V±10% 50Hz
Output Power	650W
Working Condition	0 ~ 40℃ relative humidity < 80%
Storage Temperature	-20 ~ 80℃ relative humidity < 80%
Dimensions	138100150mm
Weight	1.86KG
Performance
Item	859	869
Temperature Range	100℃~480℃	100℃~480℃
Display Mode	LED digital display	---
Air Supply Mode	Brushless fan	Brushless fan
Air Volume	120L/min (Max.)	120L/min (Max.)
Temperature Stability	±10℃ (static state)	±15℃ (static state)
Temperature Correction Mode	PID Digital program calibrate	---
PID Temperature Correction Cycle	200ms	---
Heater	Ceramic skeleton heater	Ceramic skeleton heater

Standard Configuration
Desoldering Station: 1pc
User Manual: 1pc
Air Gun Handle: 1pc
Nozzle: 3 (5mm, 8mm, 10mm)
IC Extractor: 1pc
Small Spanner (for nozzles disassembly): 1pc
Power Plug: 1pc

Application
YIHUA-859 or YIHUA-869 hot air rework station is chiefly utilized in schools, laboratories, electronic production lines, mobile phone repair industry, home appliance maintenance departments, and so on. It is suitable for the de-soldering of SMD components, multi-pin IC, and circuit board components.
