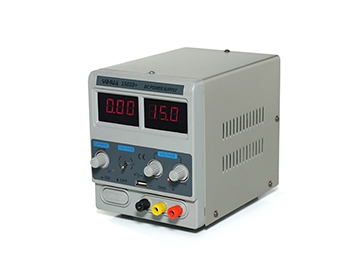

YIHUA-1502D Basic/Upgrade Version DC Power Supply

: http://yihua-soldering.com/product-4-7-dc-power-supply-en/147691/index.html

Features

Output voltage: 0-15V adjustable, Current: 0-2A/0-500mA adjustable.
YIHUA-1502D DC power supply is high in stability, reliable in quality, and durable in use.
It is a full-featured device with short circuit protection function and automatic recovery function.
YIHUA-1502D basic have 5V/15 conversion function and has USB interface .
YIHUA-1502D upgrade version with the voltage test function, it can be used to test voltage range of 0-49.9V.
YIHUA-1502D upgrade version has Mobile signals such as GSM, CDMA, and PHS, etc., can be tested with this device.
Additionally, our YIHUA-1502D upgrade version DC power supply has the on-off test function as well as 5V or 9V DC output function.

Parameters

General Information
Rated Voltage	AC220V 50Hz
Whole Machine Power	35W
Working Condition	0 ~ 40℃ relative humidity < 80%
Storage Temperature	-20 ~ 80℃ relative humidity < 80%
Dimensions	205140200cm
Weight	1.9KG
Specifications
Output Voltage	0 ~ 15V
Output Current	0-2A/0-500mA
Source Effect	1.5mV
loading Effect	≤0.13%
Ripple and Noise	≤4mV
Power Stability	≤0.5%
Measurement Accuracy	0.1V
Protected Mode	Short circuit over-current protection, automatic recovery function
Mobile Phone Signal Indicator	GSM, CDMA, PHS
Phones Emission Interference	Anti-interference

Application
This product is widely used to provide 0-15V DC power output and test 0-49.9V DC voltage in the mobile phone repairs or other related industries. Added with the 0-500mA grade, the DC power supply allows for more accurate test.
