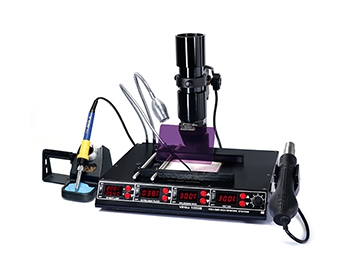

YIHUA-1000A,YIHUA-1000B Infrared BGA Rework Station
- Based on the market demand and latest technological design, the YIHUA-1000A, YIHUA-1000B infrared BGA rework station is integrated with the far infrared light, preheater, as well as soldering and hot air desoldering BGA rework stations.
- It is made with the humanization design. The infrared soldering uses the latest security probe to real-time track the surface temperature of soldering IC, thus to avoid the soldering parts damage caused by high temperature. This equipment offers an extremely good security application.
- The hot air gun uses Samsung micro control chip PID procedures based on the high-speed 100ms for periodically real-time tracking and correcting the temperature of air gun air inlet and iron tips. The temperature is highly stable.
- Iron handle of the BGA rework station adopts the high-temperature resistant silicone wire. The silicone wire has no damage within 30 seconds when contacting with the iron tips of 300℃.
- The equipment comes with the -50 ℃ to 50 ℃temperature compensation function. The infrared light has a 5-80 power adjustment function.
- Additionally, it has the ℉/℃ conversion function, to meet different customers’ needs.
| Machine Unit | ||
| Input Voltage | AC 220V±10% 50Hz | |
| Power | 1450W | |
| Constant Temperature of 300 ℃ Power (high speed PID programmable power saving) | 600W±10% | |
| Work Environment | 0~40℃ Relative humidity< 80% | |
| Storage Temperature | -20~80℃ Relative humidity< 80% | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Work Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 75W |
| Temperature Range | 100℃~480℃ | 200℃~480℃ |
| Airflow Type | Brushless fan | --- |
| Airflow | 120L/min | --- |
| Temperature Stability | ±1℃ (Static) | ±1℃ (Static) |
| Display Mode | Red/ green LED display | Red /green LED display |
| Temperature Correction Method | PID Digital program proofreading | IPID Digital program proofreading |
| PID Correction of Temperature Cycle | Speed 20ms | High speed100ms |
| Heater | Porous ceramic heater | Imported large power heater |
| Iron Tips Impedance to Ground | --- | < 2ω |
| Iron Tips Voltage to the Ground | --- | < 2mv |
Infrared lamp parts
- Work Voltage：AC 220V±10% 50Hz
- Max. Power: 150W
- Effective Exposure Area: 30*30mm
- Display Mode: Red/ green LED display
- Safety Temperature Sensor: K type Thermocouple
- Temperature Control Range: 50℃--350℃
Preheating parts
- Work Voltage：AC 220V±10% 50Hz
- Max. Power: 600W
- Effective Exposure Area: 130X130mm
- Display Mode: Display mode
- Safety Temperature Sensor: K type Thermocouple
- Temperature Control Range: 50℃--200℃
