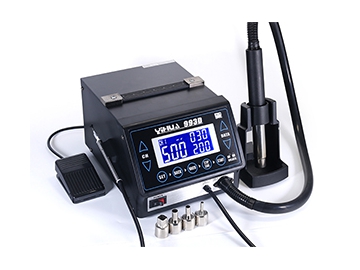

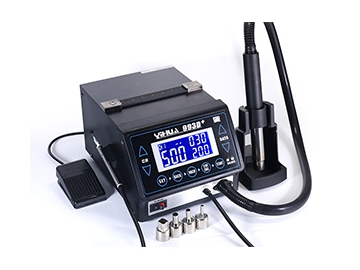

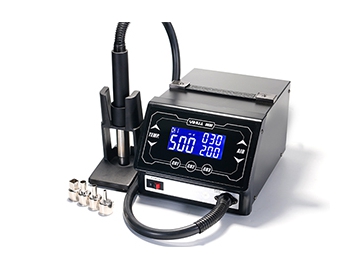

YIHUA 993D/993D Series Programmable/Non-programmable BGA Rework Station

: http://yihua-soldering.com/product-6-4-series-programmable-non-programmable-bga-rework-station.html

Features

Using the touch-screen design, easy to use and quick fashion.
Non-programming style:
1) Has ten working channel CH0 ~ CH9 can store various parameters, quickly select parameters according
to IC type.
2) Each channel has time to work, air flow, temperature three parameters, set the parameters according
to IC type, time is set to 0 can not afford to start the machine.
Programmable:
1) Has ten programmable CH0 ~ CH9 working channels, each set up six working section.
2) Can be viewed, set the time for each work period, the amount of wind, temperature, desoldering process
temperature and time meet the performance requirements of the wafer.
Table settings menu with password protection function.
YIHUA993D is non-programmable; YIHUA993D is programmable; YIHUA993D upgrade version is non-programmable type and programmable type work together;

Our Engineering combined with Foxconn factory usage has calculated perfect program control scheme which can cover market 90% IC Disassembly.
Each SEG disassembled IC show standard desoldering temperature curve: SEG1 220℃ SEG2 260℃ SEG3 295℃ SEG4 320℃
Now write into machine factory setting

Steady work channel settings: Usage Scope and desoldering time
CH0 configuration 13*13 Nozzle Removable within 13 * 13MM IC program runtime 140S
CH1 configuration 19*19 Nozzle Removable within 19 * 19MM IC program runtime 165S
CH2 configuration 30*30 Nozzle Removable within 30 * 30MM IC program runtime 195S
CH3 configuration 35*35 Nozzle Removable within 35 * 35MM IC program runtime 210S
CH4 configuration 40*40 Nozzle Removable within 40 * 40MM IC program runtime 220S

Fast-type working channel settings: Usage Scope and desoldering time

CH5 configuration 13*13 Nozzle Removable within 13 * 13MM IC program runtime 60S
CH6 configuration 19*19 Nozzle Removable within 19 * 19MM IC program runtime 85S
CH7 configuration 30*30 Nozzle Removable within 30 * 30MM IC program runtime 95S
CH8 configuration 35*35 Nozzle Removable within 35 * 35MM IC program runtime 100S
CH9 configuration 40*40 Nozzle Removable within 40 * 40MM IC program runtime 110S

Specification

Power	1300W
Voltage range	220v-240v, 50-60Hz
TEMP. range	100℃~500℃
Working time range	000-999 secs. ("---"shows not controlled by working time)
Air volume ratio range	6-200
Max. air	200L/min
Size (L X H X W)	230 X 205X170mm
Weight (including the handle)	About 4.5KG
Working condition	0-40℃/32-104℉
Storage condition	-20-80℃/-4~176℉
Storage humidity	35%~45%

Functional comparison table

Model: 993D baslc verslon
Display: LCD Display
Fahrenheit/Celsius: YES
Control mode: Digit PID
Screen saving function: NO
No air protect: YES
Programming model: NO programming

Model: 993D upgrade version
Display: LCD Display
Fahrenheit/Celsius: YES
Control mode: Digit PID
Screen saving function: NO
No air protect: YES
Programming model: NO programming

Model: 993D basic version
Display: LCD Display
Fahrenheit/Celsius: YES
Control mode: Digit PID
Screen saving function: YES
No air protect: YES
Programming model: programming

Model: 993D upgrade version
Display: LCD Display
Fahrenheit/Celsius: YES
Control mode: Digit PID
Screen saving function: YES
No air protect: YES
Programming model: Programming/NO programming
