  • Round PAR87 Lamp
  • Rectangular PAR150 Lamp

The sealed beam lamp is also known as parabolic aluminized reflector or PAR lamp. It is mainly used on heavy-duty pick-up trucks as well as passenger cars and trains.

Traditional PAR lamp has a circular paraboloid cover. Inside the cover are filaments surrounded by inert gas. Its manufacturing process often has stringent precision requirements to meet. The resulting lamp generally has a short life, as the filament within the lamp burns out rapidly.

In the past years, a series of researches have been done on the re-structuring of the sealed beam lamp. Eventually, our state-of-the-art PAR is created. This lamp has an inbuilt miniature xenon gas-filled bulb. Xenon bulb is easy to manufacture and assemble into the lamp. It uses xenon gas to replace filaments for improved life span and brighter beam. Water-tight housing ensures the proper function of the lamp even for the extreme weather conditions during driving.

Our xenon sealed beam lamp comes in two shapes: round and square, as is shown in the picture. It is also available in a wide range of diameters (round type) or widths (rectangular type), from 3 inches to 7 inches.

The bright beam produced by the lamp allows drivers to see the road farther forward. Xenon sealed beam technology also allows for the bulb to ignite at a higher color temperature up to 3200k. Dust- and humidity-proof, this sealed beam lamp gives a 500h longer life than the average lamps, too.

Benefits
  • The lamp provides better illumination with 2800lm.
  • Sturdy bulb and glass construction

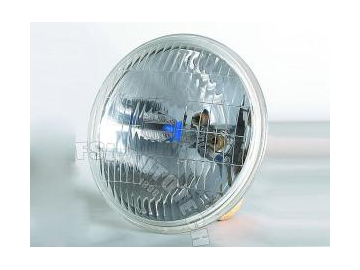

Round PAR Lamp

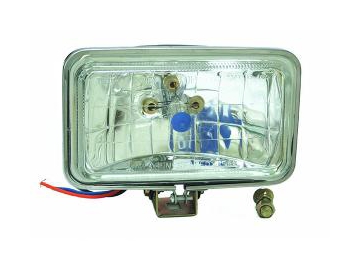

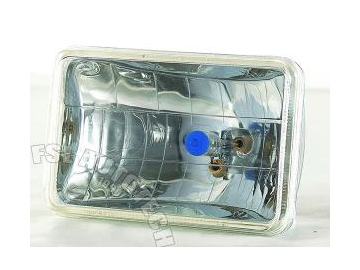

Rectangular PAR Lamp

Hermetically sealed structure provides better illumination than the HID lamp, thus ensuring safety during nighttime drive.

Sealed Beam Specification
5" Square 10PCS 4.6/6.3kg 74×31×13.5cm
7" Round 10PCS 5.4/7.5kg 77×31.5×17cm
7" Square 10PCS 7.1/9.3kg 81×33×17cm
Xenon Sealed Beam Vs Common Vacuum Lamp
Xenon Sealed Beam Vacuum Lamp Xenon HID Lamp
Flux(Brightness) 3500lumens 2000lumens 3500lumens
Projection Distance(haze-penetrating capability) Farther Far Near
Life Span 500h 200h 1000h
Ease of Installation Easy Easy Difficult
Price Cheap Cheap Expensive
Price to Performance Ratio High Medium Low

Please note:
1. The inbuilt bulb is filled with xenon gas. Nitrogen fills up the space between the inbuilt bulb andparaboloidal housing. It protects the aluminum reflective coating from oxidation, fogging, or blistering.
2. PAR87 sealed beam lamp and 4inch square PAR lamp allows users to replace the inbuilt bulb only, without the need to swap the whole structure.
