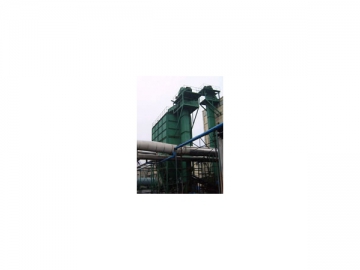

Elevator Conveyor

: http://pfcementmachinery.com

The TH type of elevator conveyor features large conveying capacity, high lifting height, stable and reliable running, as well as long service life.

The TGH type of elevator conveyor adopts hybrid or gravity type discharge. It is mainly composed of hopper, chain, head, tail, middle section, and drive unit. It is a kind of ring chain bucket elevator. This machine is suitable for conveying powdery, granular and small-block materials with the bulk density not greater than 1.5t/m3 and the temperature not more than 250℃. Our product is compact in structure and light in weight. It runs smoothly with little noise. It is convenient to install, adjust, use, and maintain. Additionally, it has long service life.

Technical Parameters

Model	Hopper form	Conveying capacity m³/h	Hopper			Chain		Sprocket pitch circle diameter mm	Speed of hopper m/s	Max. block degree of material mm
			Width mm	Volume L	Spacing mm	Pitch mm	Breaking load KN
TH315	zh	36.6	315	3.75	500	50	≥320	φ630	1.4	35
	sh	58.6		6
TGH315	zh	46		3.75	400
	sh	80		6
TH400	zh	57.7	400	5.9	500					40
	sh	92.8		9.5
TGH400	zh	80		5.9	400
	sh	125		9.5
TH500	zh	73	500	9.3	688	86	≥480	φ800	1.5	50
	sh	118		15
TGH500	zh	100		9.3	516
	sh	157		15
TH630	zh	114	630	14.6	688					60
	sh	185		23.6
TGH630	zh	152		14.6	516
	sh	246		23.6
TH800	zh	146	800	23.3	920	92	≥570	φ1000	1.4	75
	sh	235		37.5
	sh	365		58

Note: In the second column of the above table, "zh" means medium-depth and "sh" means deep. So a "zh" form of hopper is a medium-depth hopper and a "sh" form of hopper is a deep hopper.
