20511C Metric Female Multi Seal 24° DIN 3868 Fittings with O Ring, Heavy Duty Series

20511C Metric Female Multi Seal 24° DIN 3868 Fittings with O Ring, Heavy Duty Series
20511C Metric Female Multi Seal 24° DIN 3868 Fittings with O Ring, Heavy Duty Series
: http://pipefittingsltd.com/1-4-heavy-duty-pipe-fittings.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric female multi seal 24° DIN 3868 fittings with O ring, heavy duty series
  • Carbon steel metric female multi seal 24° DIN 3868 fittings with O ring, heavy duty series

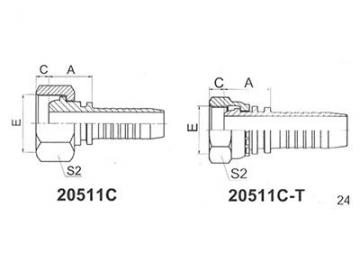

20511C Metric Female Multi Seal 24° DIN 3868 Fittings with O Ring, Heavy Duty Series List
Part No. Thread Hose Bore Tube O.D. Dimensions
E DN DASH A C S1
20511C-18-04T M18×1.5 6 04 10 21 3 22
20511C-20-05T M20×1.5 8 05 12 21.5 4.5 24
20511C-20-06T M20×1.5 10 06 12 21.5 4.5 24
20511C-22-06T M22×1.5 10 06 14 21.5 4.5 27
20511C-24-08T M24×1.5 12 08 16 23 5 30
20511C-30-10T M30×2 16 10 20 26.5 7 36
20511C-36-12T M36×2 20 12 25 27 6.5 41
20511C-42-16T M42×2 25 16 30 29.5 9 50
20511C-52-20T M52×2 32 20 38 34 8 60
