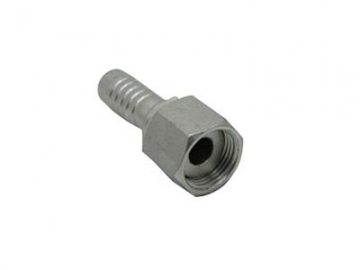

20411C Metric Female Multi Seal 24° Fittings with O Ring, Light Duty Series
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric female multi seal 24° fittings with o ring, light duty series
- Carbon steel metric female multi seal 24° fittings with o ring, light duty series

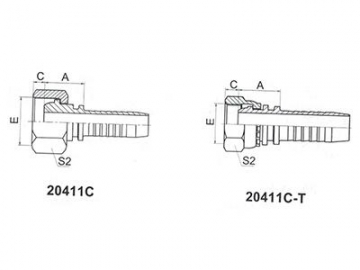

| Part No. | Thread | Hose Bore | Tube O.D. | Dimensions | ||||
| E | DN | DASH | A | C | S1 | |||
| 20411C-12-04 | M12×1.5 | 6 | 04 | 6 | 19.5 | 3.5 | 17 | |
| 20411C-14-04 | M14×1.5 | 6 | 04 | 8 | 20.5 | 3.5 | 19 | |
| 20411C-16-04T | M16×1.5 | 6 | 04 | 10 | 20.5 | 3.5 | 19 | |
| 20411C-16-05 | M16×1.5 | 8 | 05 | 10 | 21 | 3.5 | 22 | |
| 20411C-16-06 | M16×1.5 | 10 | 06 | 10 | 21 | 3.5 | 22 | |
| 20411C-18-06T | M18×1.5 | 10 | 06 | 12 | 23.5 | 3 | 22 | |
| 20411C-22-06T | M22×1.5 | 10 | 06 | 15 | 23.5 | 4.5 | 27 | |
| 20411C-22-08T | M22×1.5 | 12 | 08 | 15 | 24.5 | 4.5 | 27 | |
| 20411C-26-10T | M26×1.5 | 16 | 10 | 18 | 26.5 | 4 | 32 | |
| 20411C-30-10T | M30×2 | 16 | 10 | 22 | 26.5 | 7 | 36 | |
| 20411C-30-12T | M30×2 | 20 | 12 | 22 | 27.5 | 7 | 36 | |
| 20411C-30-14 | M30×1.5 | 22 | 14 | 22 | 27 | 7 | 36 | |
| 20411C-36-16 | M36×1.5 | 25 | 16 | 28 | 29 | 6.5 | 41 | |
| 20411C-45-20T | M45×1.5 | 32 | 20 | 35 | 33 | 7 | 55 | |
| 20411C-52-24T | M52×1.5 | 40 | 24 | 42 | 34 | 8 | 60 | |
