WN220TA(50-300)S-G Motorized Linear Stage

: http://optical-equipment.com/1-1-1-2-motorized-linear-stage.html

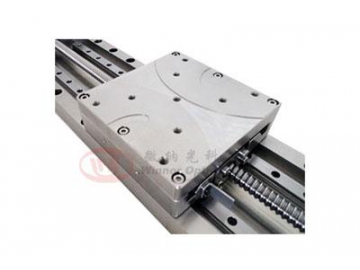

WN220TA (50-300) S-G motorized linear stage has 4 models to choose from, with a wide travel range of 50mm~300mm. The main body of motorized linear stage is made by stainless steel. Besides, featured with stepper motor and ball screw, the linear stage is well fitted to work under high load such as in industrial processing, laboratory etc.

Features

High load capacity and rigidity with imported ball screws and linear slide rail, suitable for working under high load, such as industrial processing or laboratory.
Stainless steel as main body material, making the linear stage heavier and more stable, also impervious to temperature and moisture.
Grating scale forms closed loop, which makes the linear stage more accurate. 5-phase stepper motor also increases the performance.

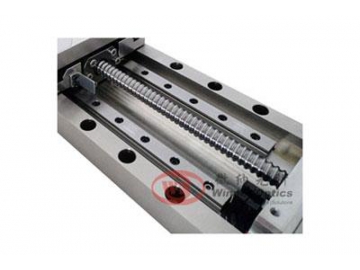

High precision ball screws ensures good repeatability and positional accuracy. Small axial clearance; long lifespan; also equipped with dustproof cover.

Model		WN220TA50S-G	WN220TA100S-G	WN220TA200S-G	WN220TA300S-G
Structure	Travel	50mm	100mm	200mm	300mm
	Table Size	115×115mm	115×115mm	115×115mm	115×115mm
	Screw Type	High precision ball screw (lead 5mm)
	Guide Rail	High precision linear slide rail
	Stepper Motor (0.72°)	5-phase Stepper motor
	Material	Stainless steel
	Load Capacity	30 kg
	Weight	8kg	10kg	12kg	13kg
Accuracy	Resolution	10μ(Non-MS driver) 0.5μ(20 MS driver)
	Maximum Speed	25mm/sec
	Repeatability	＜1μ
	Straightness	8μ		10μ	15μ
	Driving Parallelism	15μ		20μ	25μ
Accessories	Renishaw grating scale with the resolution of 0.1μ
