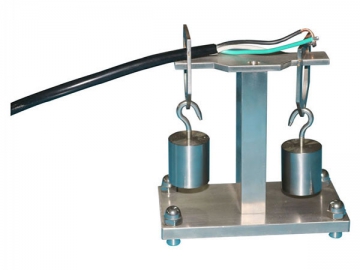

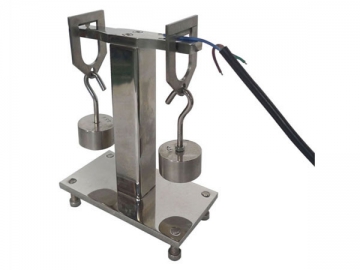

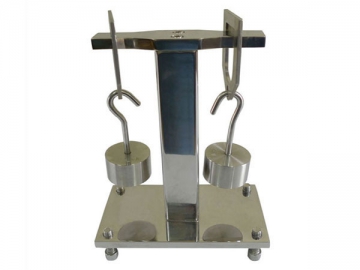

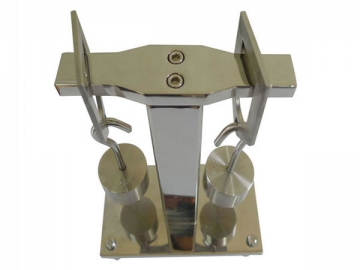

High Temperature Indentation Testing Device HC9936
Standard
IEC 60884-1 2013 clause 30.1, IEC 60598- 2-20 clause 20.15 and EN 60811-3-1
Application
This device is use for testing resistance to high temperature indentation of pin-insulating sleeves
Test Sample
The material of pin-insulating sleeves
Feature

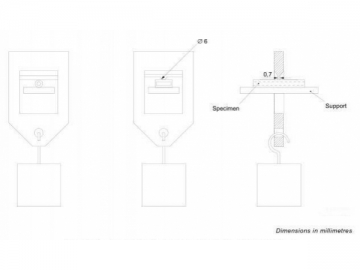

High hardness test frame, equipped with a circular blade, rectangular blade, and load weights.
Parameters
1. Width of blade: 0.7±0.01mm
2. Weight: 2.5N*2 (cable test weight can be customized)
3. Station: 2 stations
4. Equipped with one circular blade and a rectangular blade
