Standard
IEC 60884-1 2013 clause 24.2, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-31, BS1363.1, EN50075, UL60730, IEC 60312-1 and so on

Application
This device is suitable for testing the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Test sample
Plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.

Feature

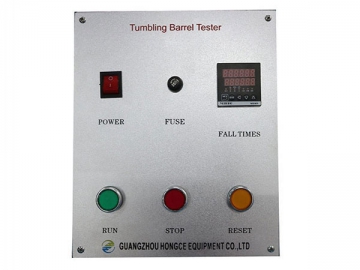

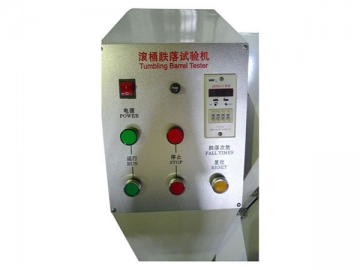

This tester can preset test times, and automatically stop when set test time is completed.

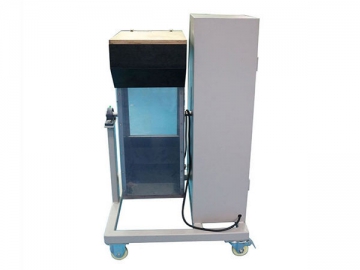

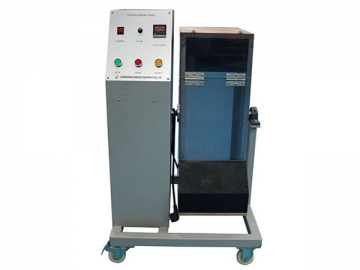

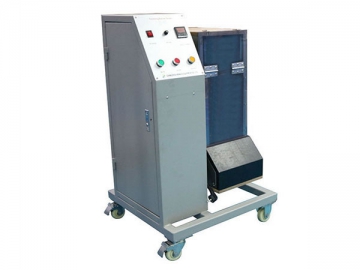

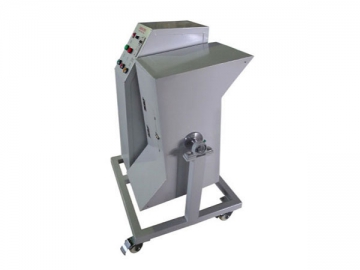

HC9922
1. Block of wood
2. Plastics laminated sheet
3. Rubber
4. Section A-A
5. For fastening of ends
6. Steel
7. The body of the rotating barrel is a sheet with 1.5 mm thickness

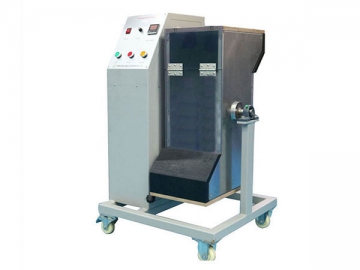

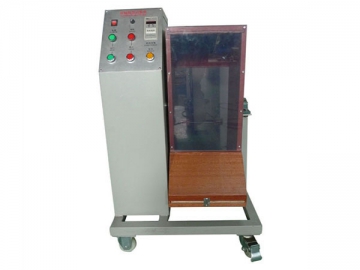

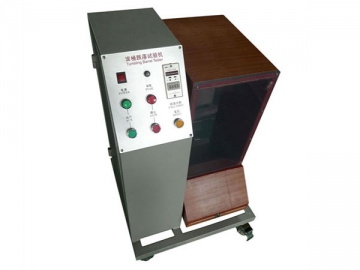

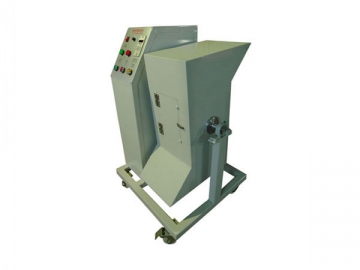

HC9922B
1. 19mm nominal thick blockboard or suitable alternative
2. 19mm norminal thick blockboard can be removeable for the replacement of the impact plates
3. Transparent sheet for observation purposes. May be removable for loading
4. Impact base 9 mm nominal thick plywood to be replace able( both ends )

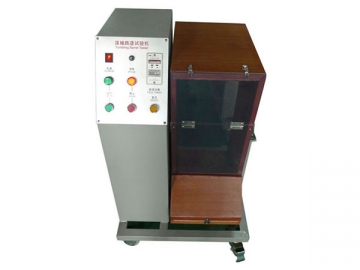

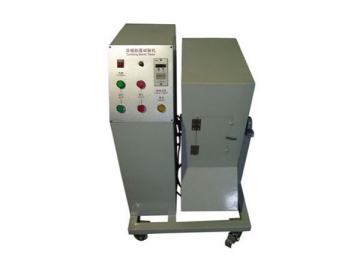

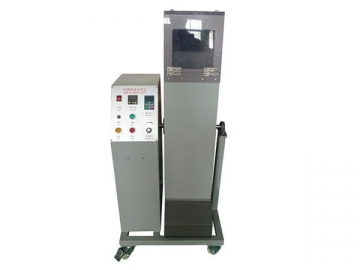

HC9922C
1. Sheet steel 5
2. Hard wooden plate 20
3. Window 200*300

Drive: geated motor and V-belt drive
Speed of rotation: approximately 5 r/min
A counter, Connected to the shaft of the drum, registers the number of falls to which the nozzle has been subjucted.

Parameters
Model HC9922 HC9922A HC9922B HC9922C
Rotate speed 5rpm 5rpm 5rpm 5rpm
Drop rate 10time per min 10time per min 10time per min 10time per min
Material Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad 3mm steel Front and rear are the transparent plastic sheet, the up, down, left and right are with thickness of 10~19mm plywood 5 mm steel and 20mm hard wooden plate
Test times 0~9999 0~9999 0~9999 0~9999
Drop height 500mm (1000mm for option) 500mm 500mm 800mm
Barrel number Single or double Single barrel Single barrel Single or double
Application Plug and socket and similar electrical accessories Plug type lamp ballast / transformer and power socket install luminaries, plug device BS plug and socket-outs Household vacuum cleaners and similar electrical appliances
Standards IEC60884.1, IEC60068-2-31, EN50075 IEC60598-1 figure25, VDE0620-1 figure27 BS1363.1 Figure20, UL60730 IEC60312-1
Power supply 220V 50Hz 220V 50Hz 220V 50Hz 220V 50Hz
