50041 Metric Standpipe 45° Elbow Fittings

50041 Metric Standpipe 45° Elbow Fittings
: http://fittings-en.com/3-1-seamless-pipe-elbow.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric standpipe 45° elbows fittings
  • Carbon steel metric standpipe 45° elbows fittings
50041 Metric Standpipe 45° Elbow Fittings List
Part No. Tube O.D. Hose Bore Dimensions Note
DN DASH A C H
50041-06-04 6 6 04 52.2 22 30.1 Light duty series
50041-08-05 8 8 05 55.7 24 32.4
50041-08-06 8 10 06 57.9 24 33.1
50041-10-05 10 8 05 54 23 30.6
50041-10-06 10 10 06 56.1 23 31.3
50041-12-06 12 10 06 58.5 23 34.5
50041-12-08 12 12 08 72.4 23 3~
50041-15-06 15 10 06 59.3 25 34.5
50041-15-08 15 12 08 70.6 25 35.7
50041-18-08 18 12 08 73.4 26 38.5
50041-18-10 18 16 10 84.6 26 39.8
50041-22-10 22 16 10 87.1 28 42.3
50041-22-12 22 20 12 93.3 28 45.9
50041-22-16 22 25 16 100.9 28 46.7
50041-28-16 28 25 16 103.7 30 49.5
50041-35-20 35 32 20 118.5 36 57 8
50041-08-04 8 6 04 53.6 24 31 .5 Heavy duty series
50041-10-04 10 6 04 54 26 31 .9
50041-12-04 12 6 04 57.1 26 35.1
50041-12-05 12 8 05 59.2 26 35.9
50041-14-06 14 10 06 61.6 29 37.3
50041-14-08 14 12 08 73.8 29 38.8
50041-14-12 14 20 12 91 .9 29 43.8
50041-16-08 16 12 8 76.6 30 41 .7
50041-16-10 16 16 10 87.8 30 43
50041-20-10 20 16 10 92.8 36 48
50041-20-12 20 20 12 100.7 36 52.6
50041-25-12 25 20 12 101.8 40 54.4
50041-25-16 25 25 16 109.4 40 55.2
50041-30-16 30 25 16 113.6 44 59.4
50041-30-20 30 32 20 124.2 44 63.5
50041-38-16 38 25 16 117.9 50 63.6
50041-38-20 38 32 20 128.4 50 67.7
Related
hose end, hose fittings, carbon steel fittings, stainless steel fittings
Related products
50091 Metric Standpipe 90° Elbow Fittings
50091 Metric Standpipe 90° Elbow Fittings
51091 Metric Standpipe 90° Elbow Fittings, GB Standard
51091 Metric Standpipe 90° Elbow Fittings, GB Standard
50011 Metric Standpipe Straight Fittings
50011 Metric Standpipe Straight Fittings

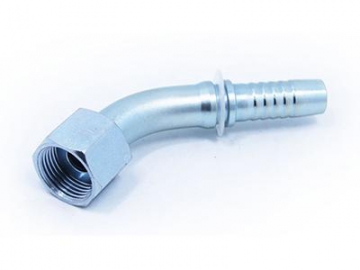

20141 Metric 45° Elbow Female Multi Seal Fittings
