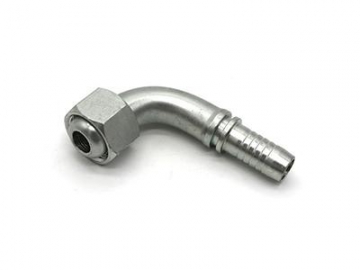

50091 Metric Standpipe 90° Elbow Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric standpipe 90° elbow fittings
- Carbon steel metric standpipe 90° elbow fittings
| Part No. | Tube O.D. | Hose Bore | Dimensions | Note | ||||
| DN | DASH | A | C | H | ||||
| 50091-06-04 | 6 | 6 | 04 | 30 | 22 | 48 | Light duty series | |
| 50091-08-06 | 8 | 10 | 06 | 35.8 | 24 | 57.8 | | |
| 50091-10-06 | 10 | 10 | 06 | 35.3 | 23 | 55.3 | | |
| 50091-12-08 | 12 | 12 | 08 | 41 | 23 | 67 | | |
| 50091-15-08 | 15 | 12 | 08 | 41 | 25 | 65 | | |
| 50091-18-10 | 18 | 16 | 10 | 56.5 | 26 | 73 | | |
| 50091-22-12 | 22 | 20 | 12 | 65.5 | 28 | 86 | | |
| 50091-28-16 | 28 | 25 | 16 | 76.7 | 30 | 95.5 | | |
| 50091-35-20 | 35 | 32 | 20 | 91.5 | 36 | 112.5 | | |
| 50091-08-04 | 08 | 6 | 04 | 30 | 24 | 52.5 | Heavy duty series | |
| 50091-12-05 | 12 | 8 | 05 | 33 | 26 | 60.5 | | |
| 50091-14-06 | 14 | 10 | 06 | 35.3 | 29 | 63.8 | | |
| 50091-14-12 | 14 | 20 | 12 | 66.2 | 29 | 83 | | |
| 50091-16-08 | 16 | 12 | 08 | 42 | 30 | 73 | | |
| 50091-16-10 | 16 | 16 | 10 | 56.5 | 30 | 77.5 | | |
| 50091-20-12 | 20 | 20 | 12 | 65.5 | 36 | 99.5 | | |
| 50091-25-16 | 25 | 25 | 16 | 76.7 | 40 | 103.5 | | |
| 50091-30-16 | 30 | 25 | 16 | 78 | 40 | 109.5 | | |
| 50091-30-20 | 30 | 32 | 20 | 91.5 | 44 | 120.5 | | |
| 50091-38-16 | 38 | 25 | 16 | 76.7 | 50 | 115.5 | | |
| 50091-38-20 | 38 | 32 | 20 | 91.5 | 50 | 126.5 | | |
