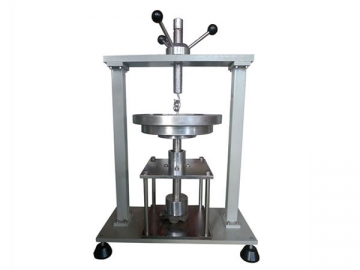

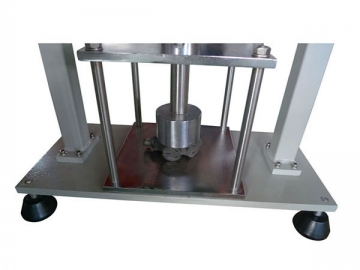

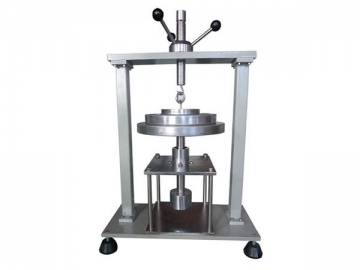

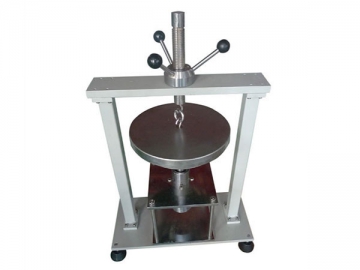

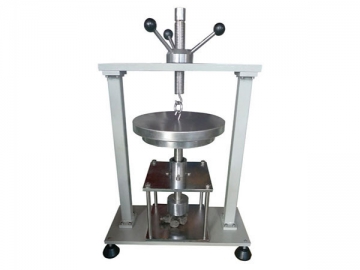

Compression Test Apparatus HC9902
Standard
IEC 60884-1 2013 clause 10.1, 24.5
Application
The compression test apparatus is used for testing the compression resistance performance of various plugs, and check whether the mechanical strength of plug complies with standard requirements.
Test Sample
Plugs
Feature
This device works by applying a compression force 300N. The temperature of the pressure plate, the base and of the specimens is set to 23±2℃, and the machine compresses the plug in two positions, each position for 1min.
(1) Force, (2) Steel pressure plate, (3) Specimen, (4) Steel base
Parameters
1. Weights: 300N (pile up with 2 150N weights)
2. Station: 1 station
3. Operation: manual
4. Test time: 1min
